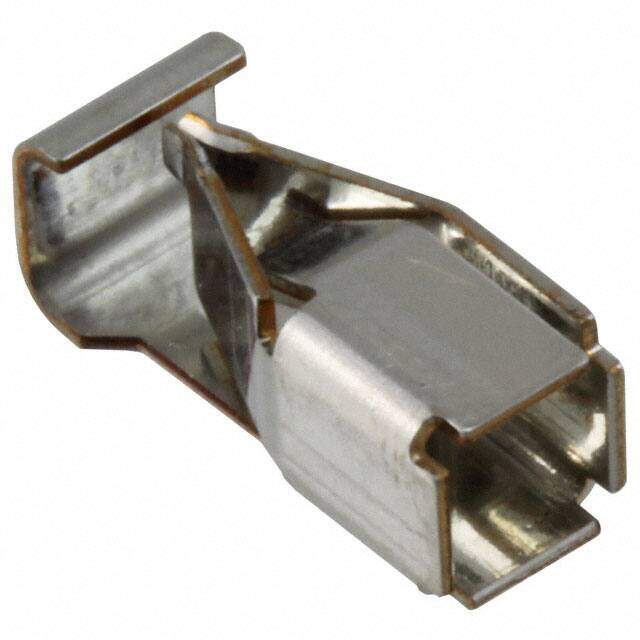

709296001003006 image
Favorite
709296001003006 image
Favorite

709296001003006

AVX Corporation
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Solid State Lighting Connectors - Contacts
Description CONN SSL POKE-IN CONT 18-26AWG
PDF
/
Buying Options
Total Price: USD $0.32
Unit Price: USD $0.3168
≥1 USD $0.3168
≥10 USD $0.2728
≥100 USD $0.240416
≥500 USD $0.22088
≥1000 USD $0.212256
≥3000 USD $0.190643
Inventory: 204190
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC

Dimensions

Length 3mm

Technical

Mating Cycles 5
Wire/Cable Gauge 18 AWG
Wire Gauge (Min) 18 AWG
Wire Gauge (Max) 26 AWG
Connector Support Type CONNECTOR ACCESSORY
Wire Gauge 18-26 AWG
Housing Color Silver
Contact Gender Female
Contact Finish Tin
Current Rating 12A
Style Board to Cable/Wire
Shielding Unshielded
Orientation Straight
Voltage - Rated 300V
Number of Positions 1
Connector Type Contact, Poke-In Wire
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series Stript? 70-9296
Published 2013
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Physical

Mounting Type Surface Mount, Right Angle
Mount Surface Mount
Contact Material Phosphor Bronze

Supply Chain

Factory Lead Time 8 Weeks
