2106378-4
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cable Assemblies / Solid State Lighting Cables
Description

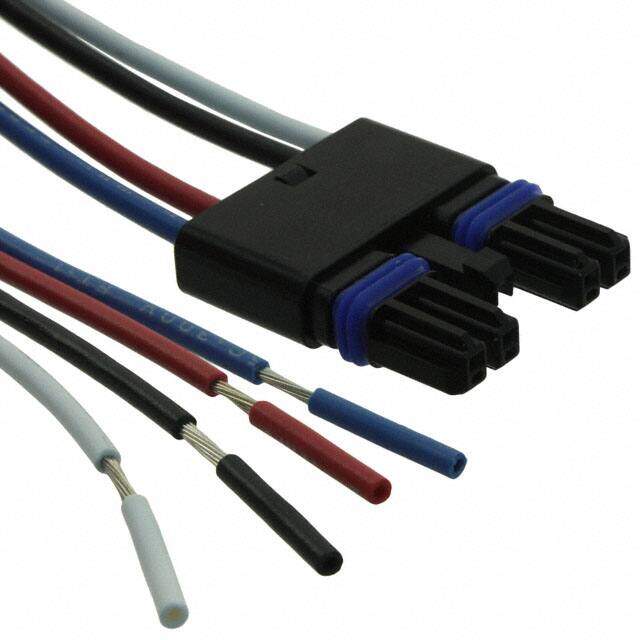

CONN PLUG CABLE ASSY 4POS 18AWG
PDF
/
Buying Options
Total Price: USD $3.62
Unit Price: USD $3.620978
≥1 USD $3.620978
Inventory: 3463
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 21 Weeks
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Physical
Contact Plating Tin
Number of Pins 4
Housing Material Polycarbonate
Technical
Packaging Bulk
Published 2011
Series SlimSeal
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
Connector Type Receptacle
Number of Positions 4
Max Operating Temperature 221°C
Min Operating Temperature -40°C
Color Black
Number of Rows 1
Gender Male
Voltage - Rated 250V
Voltage - Rated DC 250V
Pitch 3.5mm
Number of Contacts 4
Housing Color Black
Operating Supply Voltage 400V
ELV Compliant
Max Voltage Rating (AC) 250V
Wire/Cable Type Discrete
Cable Length 101.6mm
Wire/Cable Gauge 18 AWG
Max Voltage Rating (DC) 250V
Insulation Diameter 2.1 mm
1st Connector Plug, 4 Position
2nd Connector Wire Leads
Connector Type A Plug
Connector Type B Free Ends
Connector Pitch 3.5052mm
Dimensions
Length 4.00 101.6mm
Compliance
Radiation Hardening No
REACH SVHC Unknown
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
Ratings IP67
