2058300-2
RoHS
/
Package /
Category Cable Assemblies / Solid State Lighting Cables
Description

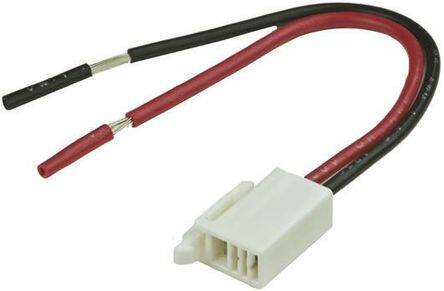

TE CONNECTIVITY 2058300-2 CABLE ASSBLY, 4IN, 4WAY, WHITE
PDF
/
Inventory: 8133
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Length 101.4984mm
Technical
Connector Type B Free Ends
Connector Type A Connector, Crimp, Receptacle, Socket
Wire/Cable Gauge 18 AWG
Cable Length 101.6mm
Wire/Cable Type Discrete
ELV Compliant
Operating Supply Voltage 125V
Housing Color Natural
Number of Contacts 4
Approval Agency UL
Current Rating 6A
Shielding Unshielded
Pitch 3.9878mm
Voltage - Rated DC 125V
Number of Rows 1
Color White, Natural
Min Operating Temperature -40°C
Max Operating Temperature 221°C
Connector Type Receptacle
Termination Crimp
Part Status Active
Published 2009
Physical
Housing Material PBT
Contact Plating Tin
Contact Material Brass, Tin
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Factory Lead Time 12 Weeks
