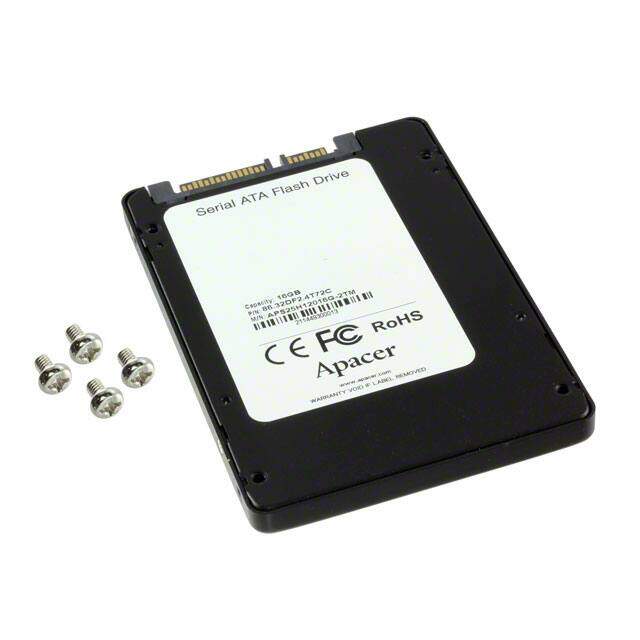

APS25H12008G-HTM1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Memory Cards, Modules / Solid State Drives (SSDs), Hard Disk Drives (HDDs)
Description
SSD 8GB 2.5" MLC SATA III 5V
PDF
/
Inventory: 9251
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 69.85mm
Length 100mm
Height Seated (Max) 7.2mm
Technical
Speed - Write 85MB/s
Speed - Read 120MB/s
Form Factor 2.5
Programming Voltage 5V
Parallel/Serial SERIAL
Memory Density 68719476736 bit
Current - Max 175mA Typ
Memory Width 8
Organization 8GX8
Operating Mode ASYNCHRONOUS
Memory Type FLASH - NAND (MLC)
Memory Size 8GB
Supply Voltage-Min (Vsup) 4.75V
Supply Voltage-Max (Vsup) 5.25V
JESD-30 Code R-XXMA-N22
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Reach Compliance Code unknown
Supply Voltage 5V
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form NO LEAD
Terminal Position UNSPECIFIED
Voltage - Supply 5V
Technology CMOS
HTS Code 8542.32.00.51
Type SATA III
ECCN Code 3A991.B.1.A
Number of Terminations 22
Moisture Sensitivity Level (MSL) 2 (1 Year)
Part Status Active
Pbfree Code yes
Size / Dimension 100.10mmx69.85mmx7.00mm
Series SFD25H1-M
Published 2015
Operating Temperature 0°C~70°C
Physical
Surface Mount YES
Supply Chain
Factory Lead Time 4 Weeks
