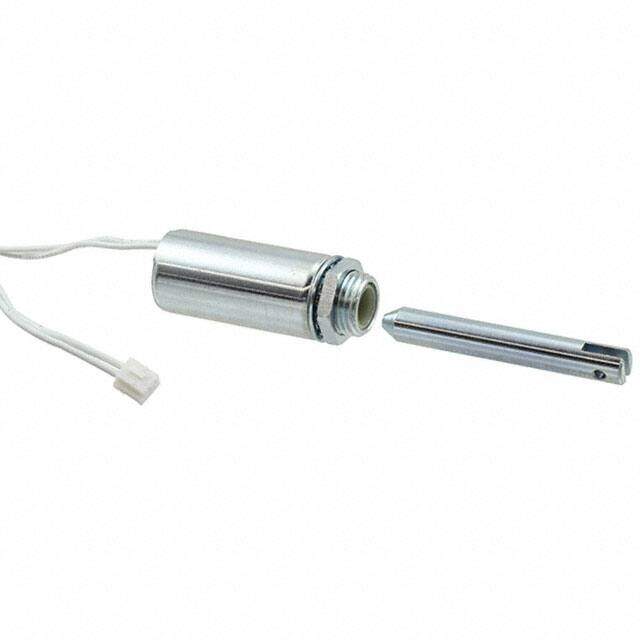

DSTL-0840-12
RoHS
RoHS compliant
RoHS compliantPackage /
Category Motors, Solenoids, Driver Boards/Modules / Solenoids, Actuators
Description
SOLENOID PULL CONTINUOUS 12V
PDF
/
Inventory: 1438
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Diameter - Shaft 0.307 (7.80mm)
Length 40.005mm
Technical
Shaft Detail Clevis
Stroke Length 0.500 12.70mm
Duty Cycle Continuous
Bushing Thread 9/16-18 UNF-2A
DC Resistance (DCR) 19Ohm
Termination Style Wire Leads with Connector
Technology Electromechanical
Max Power Dissipation 7.6W
Voltage - Rated 12VDC
Power (Watts) 7.6W
Type Closed Frame (Pull), Tubular
Termination Wire Leads
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.772Diax1.575L 19.60mmx40.00mm
Series DSTL
Published 2015
Physical
Weight 0.212lb 96.16g
Mounting Type Chassis Mount
Mount Chassis Mount
Supply Chain
Factory Lead Time 18 Weeks
