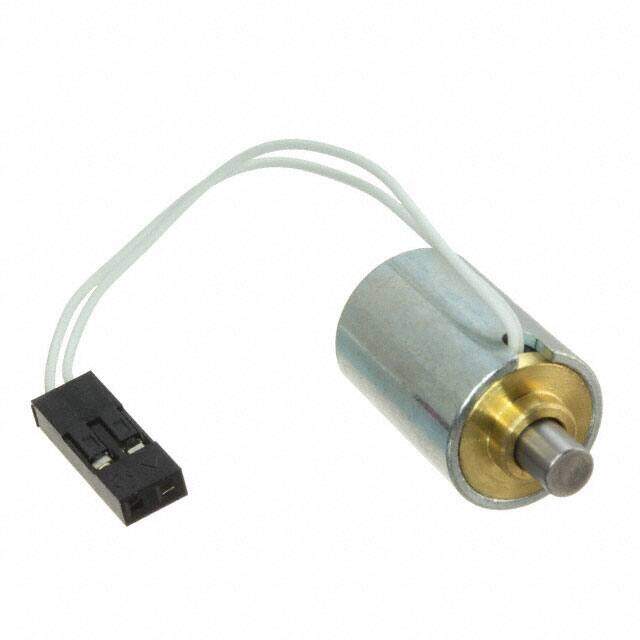

DSTL-0418-12
RoHS
RoHS compliant
RoHS compliantPackage /
Category Motors, Solenoids, Driver Boards/Modules / Solenoids, Actuators
Description
SOLENOID PULL CONTINUOUS 12V
PDF
/
Buying Options
Total Price: USD $8.82
Unit Price: USD $8.823951
≥1 USD $8.823951
≥10 USD $8.324483
≥100 USD $7.853279
≥500 USD $7.40876
≥1000 USD $6.989392
Inventory: 1147
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Chassis Mount
Mounting Type Chassis Mount
Weight 0.029lb 13.15g
Technical
Published 2015
Series DSTL
Size / Dimension 0.504Diax0.689L 12.80mmx17.50mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Wire Leads
Type Closed Frame (Pull), Tubular
Power (Watts) 1.3W
Voltage - Rated 12VDC
Max Power Dissipation 1.3W
Technology Electromechanical
Termination Style Wire Leads with Connector
DC Resistance (DCR) 110Ohm
Duty Cycle Continuous
Stroke Length 0.125 3.18mm
Shaft Detail Round
Dimensions
Length 17.5006mm
Diameter - Shaft 0.156 (3.97mm)
Compliance
RoHS Status ROHS3 Compliant
