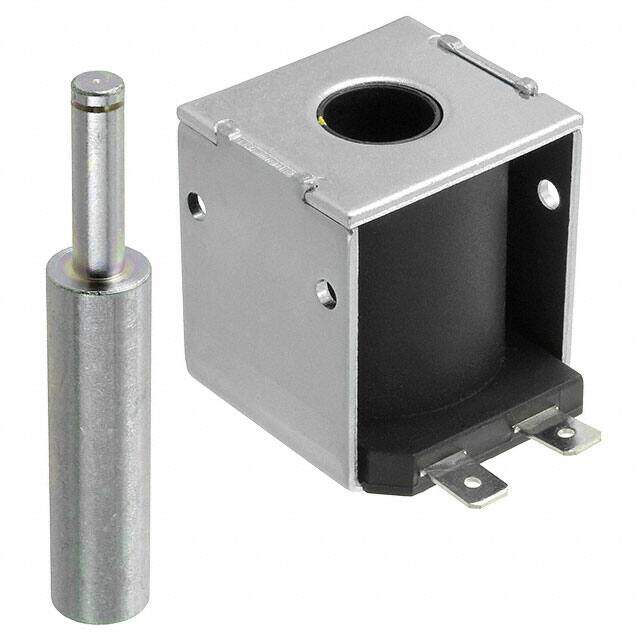

DSOL-1341-240
RoHS
RoHS compliant
RoHS compliantPackage /
Category Motors, Solenoids, Driver Boards/Modules / Solenoids, Actuators
Description
SOLENOID PULL INTERMITTENT 240V
PDF
/
Buying Options
Total Price: USD $11.34
Unit Price: USD $11.336641
≥1 USD $11.336641
≥10 USD $10.694948
≥100 USD $10.089577
≥500 USD $9.51846
≥1000 USD $8.979682
Inventory: 1152
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Diameter - Shaft 0.247 (6.27mm)
Height 37.2872mm
Technical
Shaft Detail Groove
Stroke Length 0.787 20.00mm
Duty Cycle Intermittent
DC Resistance (DCR) 246Ohm
Termination Style Quick Connect
Technology Electromechanical
Max Power Dissipation 235W
Voltage - Rated 240VAC
Type Open Frame (Pull)
Termination Quick Connect
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 1.609Lx1.312W x 1.468 H 40.87mmx33.33mmx37.29mm
Series DSOL
Published 2015
Physical
Weight 0.507lb 229.97g
Mounting Type Chassis Mount
Mount Chassis Mount
Supply Chain
Factory Lead Time 18 Weeks
