DSOL-0630-12C
RoHS
RoHS compliant
RoHS compliantPackage /
Category Motors, Solenoids, Driver Boards/Modules / Solenoids, Actuators
Description

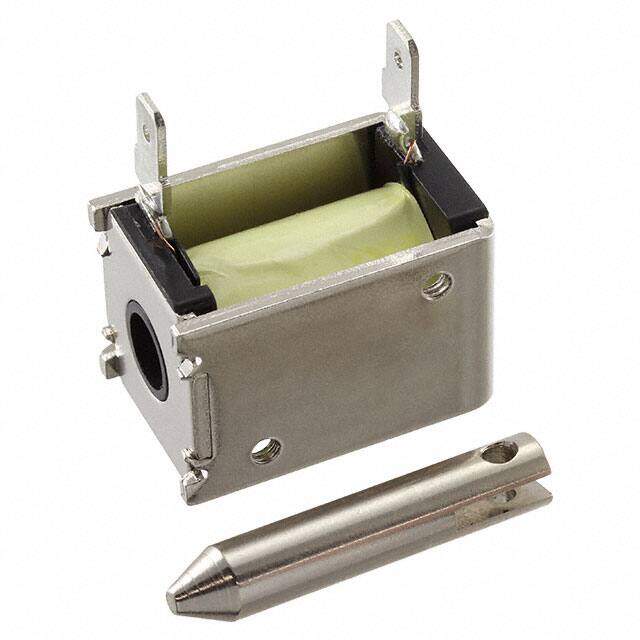

DC SOLENOID, OPEN FRAME PULL TYP
PDF
/
Buying Options
Total Price: USD $15.64
Unit Price: USD $15.6376
≥1 USD $15.6376
≥10 USD $13.90048
≥100 USD $13.205632
≥500 USD $12.510784
≥1000 USD $11.815672
≥3000 USD $10.773136
Inventory: 305
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Diameter - Shaft 0.250 (6.35mm)
Technical
Shaft Detail Clevis
Stroke Length 0.500 12.70mm
Duty Cycle Continuous
DC Resistance (DCR) 36Ohm
Termination Style Quick Connect - 0.187 (4.7mm)
Technology Electromechanical
Voltage - Rated 12VDC
Power (Watts) 4W
Type Open Frame (Pull)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 1.160Lx0.750W x 0.750 H 29.46mmx19.05mmx19.05mm
Series DSOL
Published 2016
Physical
Weight 0.176lb 79.83g
Mounting Type Chassis Mount
Supply Chain
Factory Lead Time 20 Weeks
