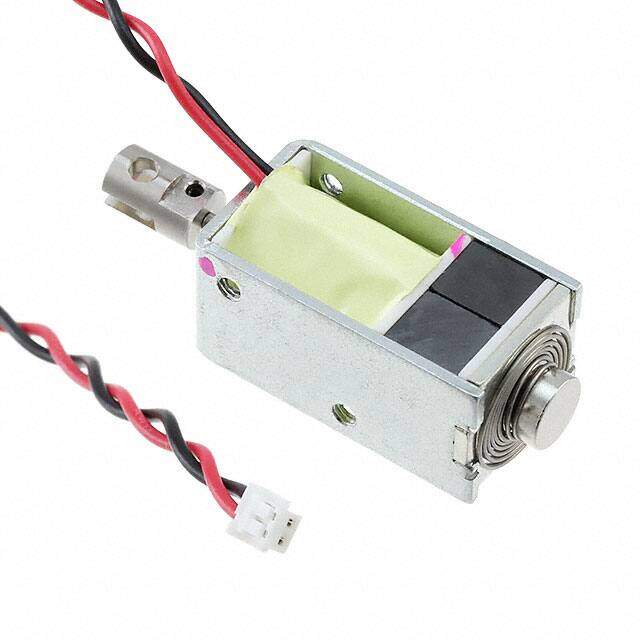

DSMS-0730-18
RoHS
RoHS compliant
RoHS compliantPackage /
Category Motors, Solenoids, Driver Boards/Modules / Solenoids, Actuators
Description
SOLENOID PUSH PULSE 18V
PDF
/
Buying Options
Total Price: USD $24.71
Unit Price: USD $24.7104
≥1 USD $24.7104
≥10 USD $23.47312
Inventory: 54
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Diameter - Shaft 0.236 (6.00mm)
Width 16.002mm
Length 29.9974mm
Height 13.9954mm
Technical
Shaft Detail Clevis
Stroke Length 0.138 3.50mm
Duty Cycle Pulse
DC Resistance (DCR) 9.4Ohm
Termination Style Wire Leads with Connector
Technology Electromechanical
Max Power Dissipation 4W
Voltage - Rated 18VDC
Power (Watts) 34W
Type Open Frame Latching (Push)
Termination Wire Leads
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 1.181Lx0.630W x 0.551 H 30.00mmx16.00mmx14.00mm
Series DSMS
Published 2016
Physical
Weight 0.084lb 38.1g
Mounting Type Chassis Mount
Mount Chassis Mount
Supply Chain
Factory Lead Time 18 Weeks
