DSML-0224-18
RoHS
RoHS compliant
RoHS compliantPackage /
Category Motors, Solenoids, Driver Boards/Modules / Solenoids, Actuators
Description

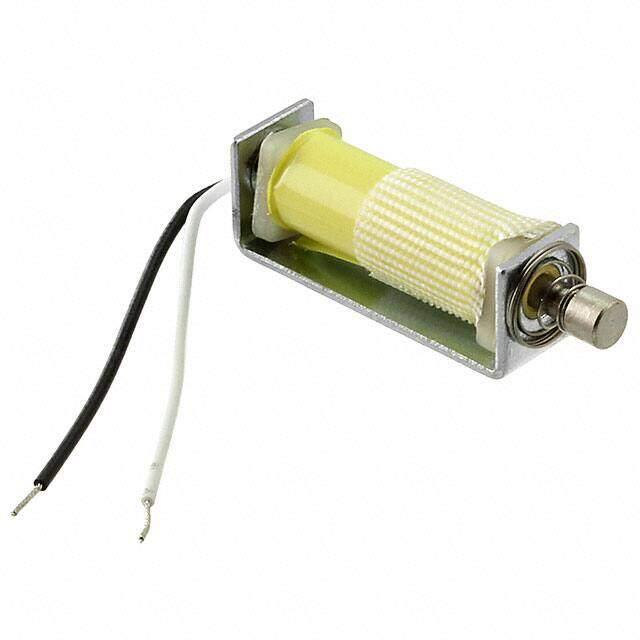

SOLENOID PULL PULSE 18V
PDF
/
Buying Options
Total Price: USD $8.94
Unit Price: USD $8.9408
≥1 USD $8.9408
≥10 USD $8.37936
≥100 USD $7.44832
≥500 USD $7.075728
Inventory: 140
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Chassis Mount
Mounting Type Chassis Mount
Weight 0.012lb 5.44g
Technical
Published 2015
Series DSML
Size / Dimension 0.910Lx0.280W x 0.330 H 23.11mmx7.11mmx8.38mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Wire Leads
Type Open Frame (Pull)
Voltage - Rated 18VDC
Max Power Dissipation 13W
Technology Electromechanical
Termination Style Wire Leads
DC Resistance (DCR) 24.6Ohm
Duty Cycle Pulse
Shaft Detail Round
Stroke Length 0.200 5.08mm
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Diameter - Shaft 0.130 (3.30mm)
Height 8.382mm
