IPC0171-S

Chip Quik Inc.
RoHS
RoHS RoHS compliant
Package /
Category Soldering, Desoldering, Rework Products / Solder Stencils, Templates
Description Proto-Advantage IPC Stainless Steel 25 BGA BGA Solder Stencil/Template 0.315L x 0.236W (8.00mm x 6.00mm)
PDF
/
Inventory: 4864
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 2 Weeks

Physical

Material Stainless Steel

Technical

Published 2017
Series Proto-Advantage IPC
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Type BGA
Number of Positions 25
Pitch 0.039 1.00mm
Outer Dimension 1.300 L x 0.900 W (33.02mm x 22.86mm)

Dimensions

Thickness 0.0040 0.102mm
Diameter - Inner 0.315 L x 0.236 W (8.00mm x 6.00mm)

Compliance

RoHS Status ROHS3 Compliant

Recommended For You

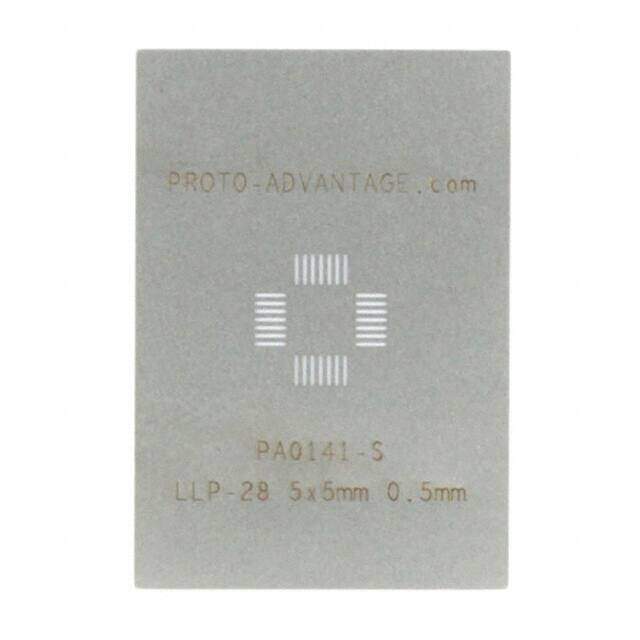

PA0141-S
