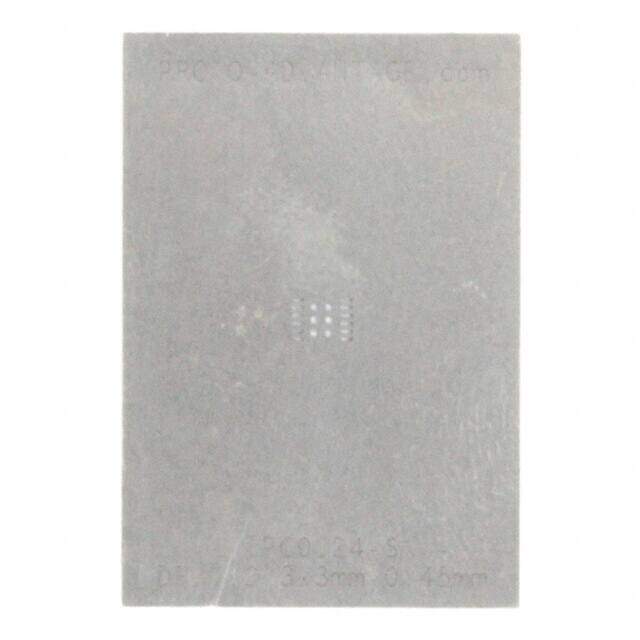

IPC0124-S image
Favorite
IPC0124-S image
Favorite

IPC0124-S

Chip Quik Inc.
RoHS
RoHS RoHS compliant
Package /
Category Soldering, Desoldering, Rework Products / Solder Stencils, Templates
Description DFN-12 STENCIL
PDF
/
Inventory: 9741
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Diameter - Inner 0.118 L x 0.118 W (3.00mm x 3.00mm)
Thickness 0.0040 0.102mm

Technical

Thermal Center Pad 0.094 L x 0.065 W (2.38mm x 1.65mm)
Outer Dimension 1.300 L x 0.900 W (33.02mm x 22.86mm)
Pitch 0.018 0.45mm
Number of Positions 12
Type DFN
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series Proto-Advantage IPC
Published 2014

Physical

Material Stainless Steel
