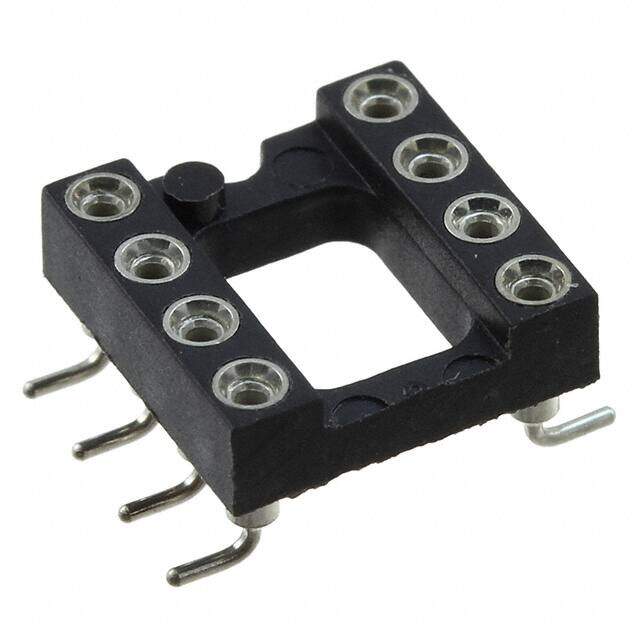

1814640-8
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Sockets for ICs, Transistors
Description
Conn DIP Socket SKT 8 POS 2.54mm Solder ST SMD Tube
PDF
/
Buying Options
Total Price: USD $1.81
Unit Price: USD $1.811802
≥1 USD $1.811802
≥200 USD $0.701089
≥500 USD $0.677456
≥1000 USD $0.664327
Inventory: 9637
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Contact Material Copper
Contact Plating Gold
Mount Vertical
Mounting Type Surface Mount
Insulation Material Polyester
Housing Material Thermoplastic, Polyester
Number of Positions or Pins (Grid) 8 (2 x 4)
Contact Material - Mating Beryllium Copper
Contact Material - Post Brass
Technical
Operating Temperature -55°C~125°C
Packaging Tube
Published 2011
Feature Open Frame
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Type DIP, 0.3 (7.62mm) Row Spacing
Number of Positions 8
Max Operating Temperature -125°C
Min Operating Temperature -55°C
Color Black
Number of Rows 2
Gender Female
Contact Finish - Mating Tin
Current Rating (Amps) 1A
Pitch 2.54mm
Orientation Straight
Depth 10.1mm
Current Rating 1A
Pitch - Mating 0.100 2.54mm
Number of Contacts 8
Contact Finish - Post Tin
Lead Length 2.84mm
Contact Resistance 10mOhm
Insulation Resistance 10GOhm
Row Spacing 7.62 mm
ELV Compliant
Pitch - Post 0.100 2.54mm
Dimensions
Length 10.1mm
Contact Finish Thickness - Mating 200.0μin 5.08μm
Contact Finish Thickness - Post 200.0μin 5.08μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
