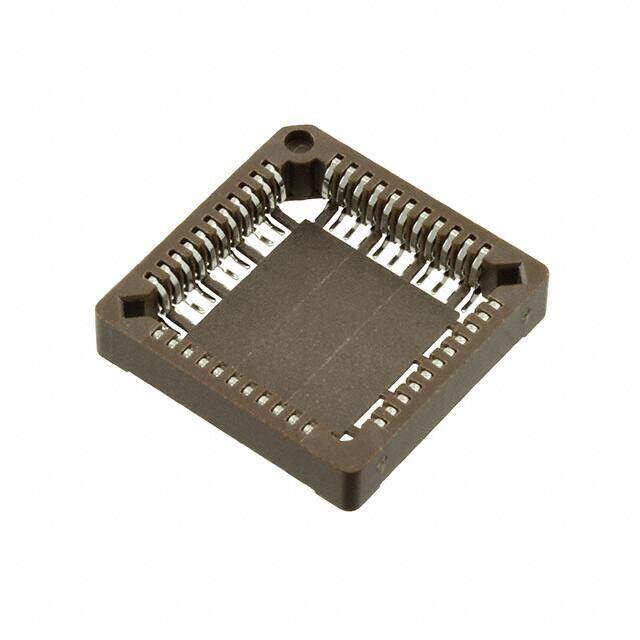

540-88-044-17-400-TR
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Sockets for ICs, Transistors
Description
Conn PLCC Socket SKT 44 POS 1.27mm Solder ST SMD T/R
PDF
/
Buying Options
Total Price: USD $2.53
Unit Price: USD $2.532584
≥1 USD $2.532584
≥250 USD $1.010933
≥500 USD $0.976798
≥1000 USD $0.95973
Inventory: 1243
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Bronze
Mount Surface Mount
Mounting Type Surface Mount
Insulation Material Polyphenylene
Housing Material Polyphenylene Sulfide (PPS)
Number of Positions or Pins (Grid) 44 (4 x 11)
Contact Material - Mating Phosphor Bronze
Contact Material - Post Phosphor Bronze
Technical
Packaging Tape & Reel (TR)
Published 2010
Series 540
Feature Closed Frame
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Type PLCC
Max Operating Temperature 125°C
Min Operating Temperature -55°C
Gender Female
Voltage - Rated DC 150V
Contact Finish - Mating Tin
Orientation Straight
Current Rating 1A
Pitch - Mating 0.050 1.27mm
Voltage - Rated AC 100V
Number of Contacts 44
Contact Resistance 20mOhm
Insulation Resistance 5GOhm
Pitch - Post 0.100 2.54mm
Dimensions
Height 4.6mm
Length 22.42mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
