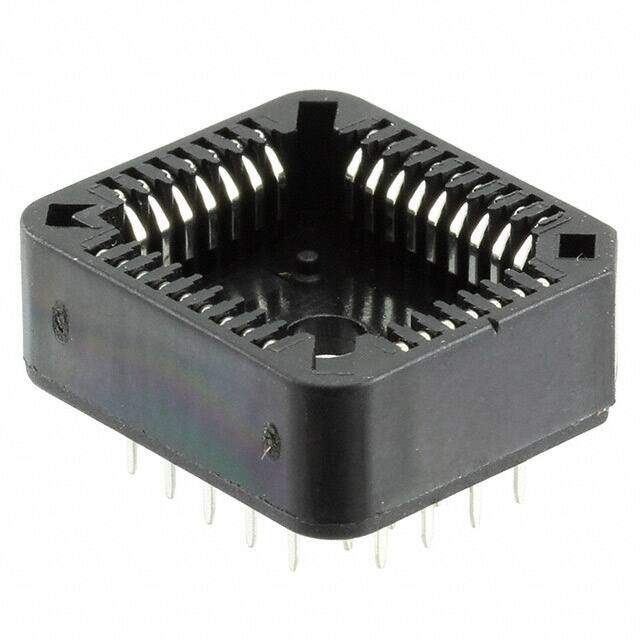

ED032PLCZ
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Sockets for ICs, Transistors
Description
CONN SOCKET PLCC 32POS TIN
PDF
/
Buying Options
Total Price: USD $2.52
Unit Price: USD $2.519455
≥1 USD $2.519455
≥196 USD $1.005681
≥504 USD $0.972859
≥1008 USD $0.955791
Inventory: 5944
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mounting Type Through Hole
Number of Pins 32
Housing Material Polybutylene Terephthalate (PBT)
Number of Positions or Pins (Grid) 32 (2 x 16)
Contact Material - Mating Phosphor Bronze
Contact Material - Post Phosphor Bronze
Technical
Operating Temperature -55°C~105°C
Packaging Tube
Series ED
Feature Closed Frame
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Type PLCC
Contact Finish - Mating Tin
Current Rating (Amps) 1A
Pitch - Mating 0.100 2.54mm
Body Length or Diameter 0.809 inch
Number of Contacts 32
Body Breadth 0.71 inch
Body Depth 0.254 inch
Contact Resistance 30mOhm
Dielectric Withstanding Voltage 500VAC V
Termination Post Length 0.118 3.00mm
Pitch - Post 0.100 2.54mm
Contact Configuration 9X7
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
