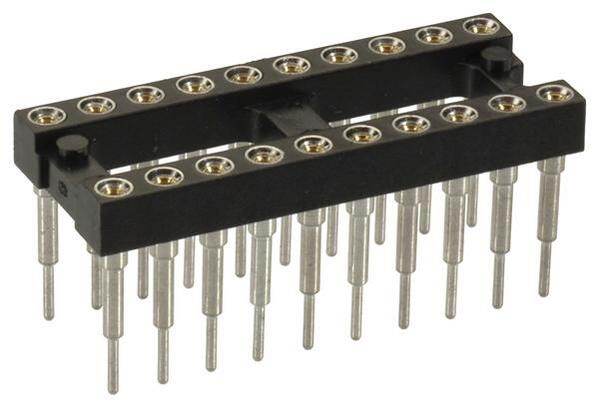

D95020-42
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Sockets for ICs, Transistors
Description
IC & Component Sockets 20 WAY DIL IC SOCKET VRT EXTENDED PC TAIL
PDF
/
Inventory: 8570
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 20 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Number of Pins 20
Housing Material Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Number of Positions or Pins (Grid) 20 (2 x 10)
Contact Material - Mating Beryllium Copper
Contact Material - Post Brass
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2010
Series D95
JESD-609 Code e3
Feature Elevated, Open Frame
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Type DIP, 0.3 (7.62mm) Row Spacing
Additional Feature ROHS COMPLIANT
HTS Code 8536.69.40.40
Contact Finish - Mating Gold
Current Rating 1A
Pitch - Mating 0.100 2.54mm
Body Length or Diameter 0.996 inch
Number of Contacts 20
Contact Finish - Post Tin
Body Breadth 0.394 inch
Lead Length 3.2004mm
Body Depth 0.315 inch
Contact Style RND PIN-SKT
Contact Resistance 10mOhm
Insulation Resistance 10000000000Ohm
Mating Contact Pitch 0.1 inch
Dielectric Withstanding Voltage 1000VAC V
Termination Post Length 0.126 3.20mm
Pitch - Post 0.100 2.54mm
Dimensions
Contact Finish Thickness - Mating 29.5μin 0.75μm
Contact Finish Thickness - Post 196.9μin 5.00μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
