D01-9503242
RoHS
RoHS compliant
RoHS compliantPackage SIL
Category Connectors, Interconnects / Sockets for ICs, Transistors
Description

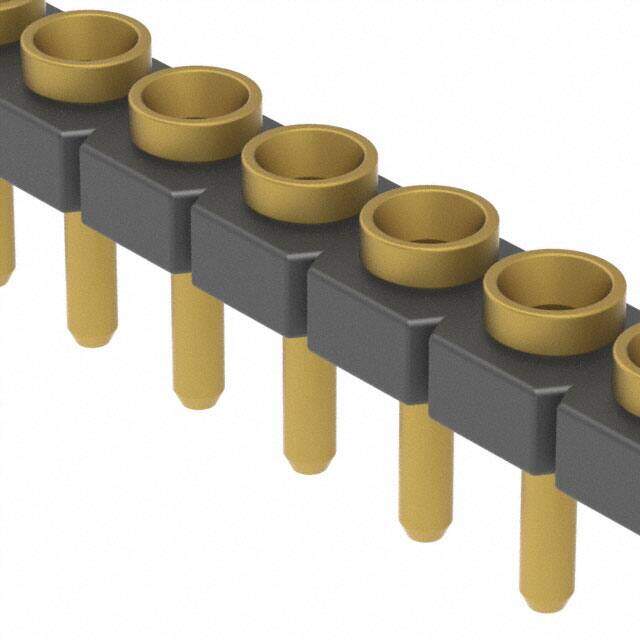

IC & Component Sockets 32 WAY SIL EXTENDED IC SOCKET
PDF
/
Inventory: 6704
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 29.5μin 0.75μm
Technical
Pitch - Post 0.100 2.54mm
Termination Post Length 0.126 3.20mm
Body/Shell Style SOCKET
Contact Resistance 10mOhm
Lead Length 3.2004mm
UL Flammability Code 94V-0
Contact Gender FEMALE
Mating Information NS
Contact Finish - Post Tin
Pitch - Mating 0.100 2.54mm
Current Rating 1A
Reach Compliance Code not_compliant
Terminal Pitch 2.54mm
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
HTS Code 8536.69.40.40
Number of Rows 1
Type SIP
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Feature Elevated
JESD-609 Code e3
Series D01-950
Published 2010
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Contact Material - Post Brass
Contact Material - Mating Beryllium Copper
Number of Positions or Pins (Grid) 32 (1 x 32)
Housing Material Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Number of Pins 32
Package / Case SIL
Mounting Type Through Hole
Mount Through Hole
