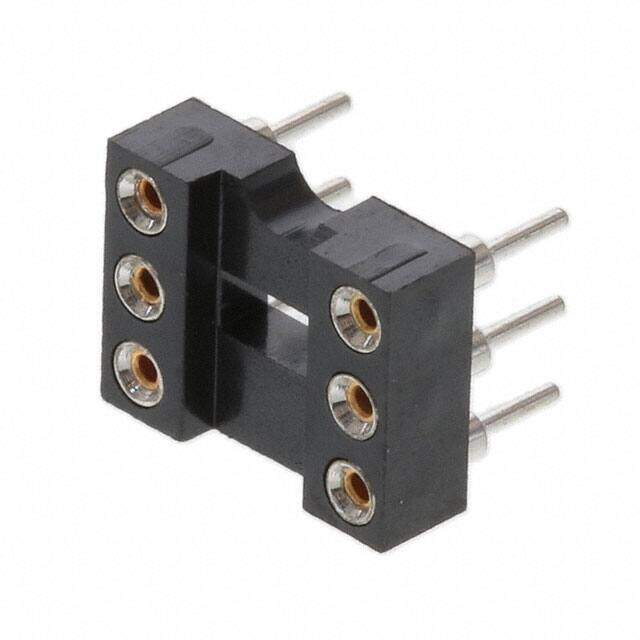

211-1-06-003
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Sockets for ICs, Transistors
Description
CONN IC DIP SOCKET 6POS GOLD
PDF
/
Buying Options
Total Price: USD $0.62
Unit Price: USD $0.6248
≥1 USD $0.6248
≥10 USD $0.5456
≥100 USD $0.498784
≥500 USD $0.469216
≥1000 USD $0.449768
≥3000 USD $0.410643
Inventory: 7437
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mounting Type Through Hole
Number of Pins 6
Housing Material Polybutylene Terephthalate (PBT)
Number of Positions or Pins (Grid) 6 (2 x 3)
Contact Material - Mating Beryllium Copper
Contact Material - Post Brass
Technical
Operating Temperature -55°C~105°C
Packaging Tube
Published 2012
Feature Open Frame
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Type DIP, 0.3 (7.62mm) Row Spacing
Contact Finish - Mating Gold
Current Rating (Amps) 3A
Pitch - Mating 0.100 2.54mm
Contact Finish - Post Tin
Contact Resistance 4mOhm
Termination Post Length 0.110 2.78mm
Pitch - Post 0.100 2.54mm
Dimensions
Contact Finish Thickness - Mating 10.0μin 0.25μm
Contact Finish Thickness - Post 200.0μin 5.08μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
