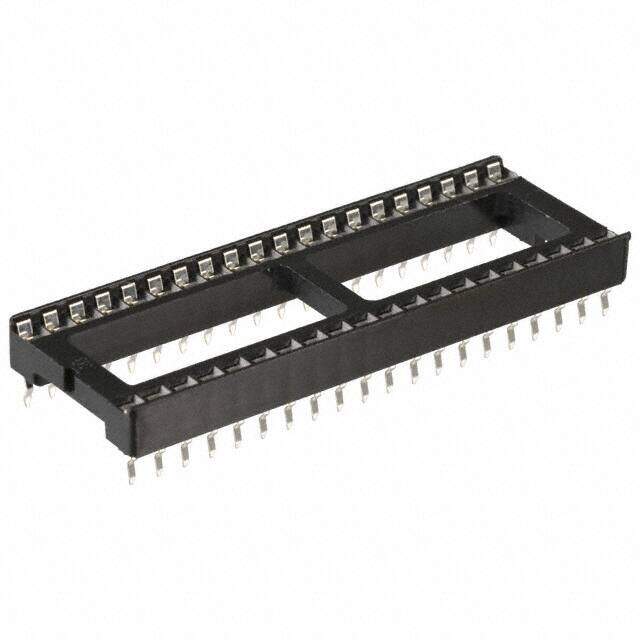

A 40-LC-TR
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Sockets for ICs, Transistors
Description
Transistor Socket
PDF
/
Buying Options
Total Price: USD $0.6
Unit Price: USD $0.5984
≥1 USD $0.5984
≥10 USD $0.51847
≥100 USD $0.47373
≥500 USD $0.44587
≥1000 USD $0.427205
≥3000 USD $0.390095
Inventory: 447
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Technical
Pitch - Post 0.100 2.54mm
Termination Post Length 0.124 3.15mm
PCB Contact Row Spacing 0.6 mm
Dielectric Withstanding Voltage 1400VAC V
Mating Contact Pitch 0.1 inch
Insulation Resistance 5000000000Ohm
Contact Resistance 30mOhm
Contact Style BELLOWED TYPE
Body Depth 0.201 inch
Body Breadth 0.7 inch
PCB Contact Pattern RECTANGULAR
Number of Contacts 40
Body Length or Diameter 2 inch
Pitch - Mating 0.100 2.54mm
Terminal Pitch 2.54mm
Current Rating (Amps) 1A
Contact Finish - Mating Tin
Type DIP, 0.6 (15.24mm) Row Spacing
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Open Frame
JESD-609 Code e3
Published 2011
Packaging Tube
Operating Temperature -55°C~85°C
Physical
Contact Material - Post Phosphor Bronze
Contact Material - Mating Phosphor Bronze
Number of Positions or Pins (Grid) 40 (2 x 20)
Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Supply Chain
Factory Lead Time 23 Weeks
