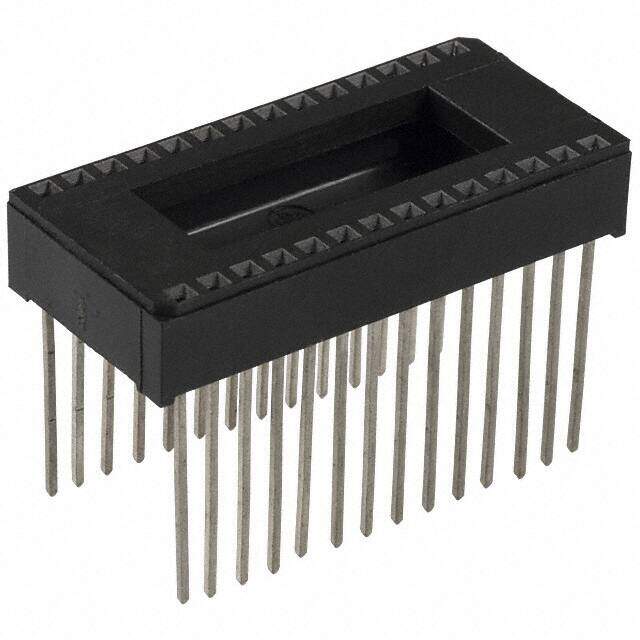

C8128-04
RoHS
/
Package /
Category Connectors, Interconnects / Sockets for ICs, Transistors
Description
CONN IC DIP SOCKET 28POS TIN
PDF
/
Inventory: 3869
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 200.0μin 5.08μm
Contact Finish Thickness - Mating 200.0μin 5.08μm
Width 17.8mm
Length 37.6mm
Height 7.11mm
Technical
Pitch - Post 0.100 2.54mm
Termination Post Length 0.675 17.15mm
PCB Contact Row Spacing 0.6 mm
Dielectric Withstanding Voltage 1000VAC V
Mating Contact Pitch 0.1 inch
Insulation Resistance 1000000000Ohm
Contact Style SQ PIN-SKT
Body Breadth 0.7 inch
PCB Contact Pattern RECTANGULAR
Number of Contacts 28
Lead Pitch 2.54mm
Pitch - Mating 0.100 2.54mm
Current Rating (Amps) 1.5A
Contact Finish - Mating Tin
Additional Feature STANDARD: UL 94V-0
Number of Rows 2
Number of Positions 28
Type DIP, 0.6 (15.24mm) Row Spacing
ECCN Code EAR99
Termination Wire Wrap
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Feature Closed Frame
JESD-609 Code e3
Series Edge-Grip?, C81
Published 2009
Packaging Bulk
Operating Temperature -55°C~105°C
Physical
Contact Material - Post Phosphor Bronze
Contact Material - Mating Phosphor Bronze
Number of Positions or Pins (Grid) 28 (2 x 14)
Housing Material Polyamide (PA46), Nylon 4/6, Glass Filled
Mounting Type Through Hole
Mount Wire
Contact Material Bronze
