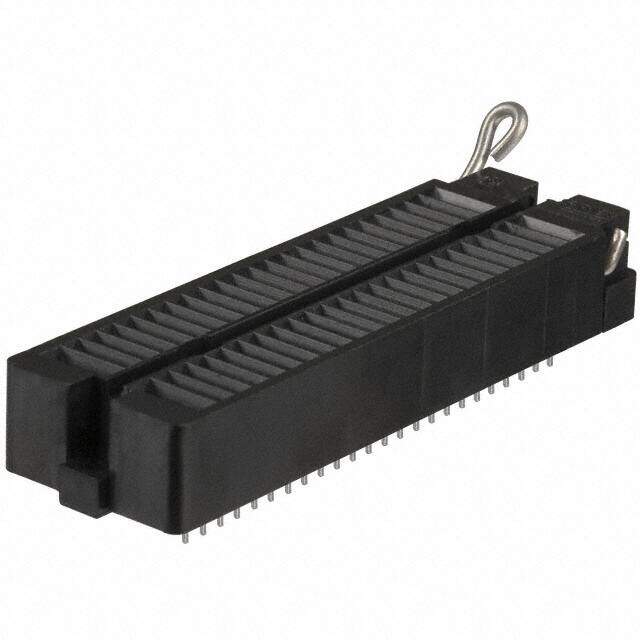

48-6574-10
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Sockets for ICs, Transistors
Description
CONN IC DIP SOCKET ZIF 48POS GLD
PDF
/
Inventory: 2351
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 10.0μin 0.25μm
Contact Finish Thickness - Mating 10.0μin 0.25μm
Width 22.9mm
Length 76mm
Height 11.9mm
Technical
Pitch - Post 0.100 2.54mm
Termination Post Length 0.110 2.78mm
Dielectric Withstanding Voltage 1000VAC V
Mating Contact Pitch 0.1 inch
Row Spacing 15.24 mm
Insulation Resistance 1000000000Ohm
Contact Style SQ PIN-SKT
Body Depth 0.47 inch
Body Breadth 0.9 inch
Operating Temperature (Max) 105°C
PCB Contact Pattern RECTANGULAR
Number of Contacts 48
Pitch - Mating 0.100 2.54mm
Terminal Pitch 2.54mm
Current Rating (Amps) 1A
Contact Finish - Mating Gold
Additional Feature STANDARD: UL 94V-0
Number of Positions 48
Type DIP, ZIF (ZIP), 0.6 (15.24mm) Row Spacing
Connector Type DIP
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Closed Frame
JESD-609 Code e3
Series 57
Published 2008
Packaging Bulk
Physical
Contact Material - Post Beryllium Copper
Contact Material - Mating Beryllium Copper
Number of Positions or Pins (Grid) 48 (2 x 24)
Housing Material Polyphenylene Sulfide (PPS), Glass Filled
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Contact Material Copper
Supply Chain
Factory Lead Time 5 Weeks
