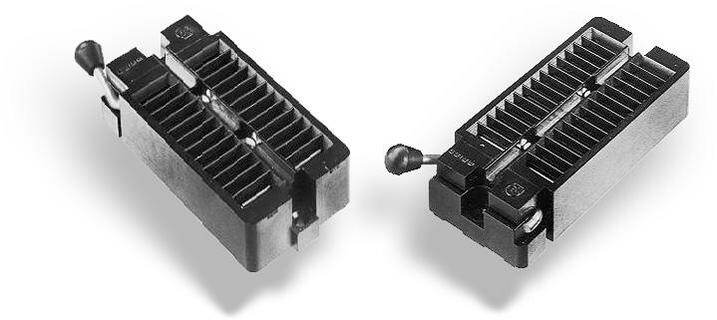

42-6573-11
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Sockets for ICs, Transistors
Description
IC & Component Sockets QUICK RELEASE 42 PIN GOLD
PDF
/
Buying Options
Total Price: USD $72.38
Unit Price: USD $72.376238
≥1 USD $72.376238
≥200 USD $28.878548
≥500 USD $27.913567
≥1000 USD $27.436984
Inventory: 4768
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 200.0μin 5.08μm
Contact Finish Thickness - Mating 200.0μin 5.08μm
Technical
Pitch - Post 0.100 2.54mm
Termination Post Length 0.110 2.78mm
PCB Contact Row Spacing 0.6 mm
Dielectric Withstanding Voltage 1000VAC V
Mating Contact Pitch 0.1 inch
Insulation Resistance 1000000000Ohm
Contact Style SQ PIN-SKT
Body Depth 0.47 inch
Lead Length 2.794mm
Body Breadth 0.9 inch
Operating Temperature (Max) 150°C
PCB Contact Pattern RECTANGULAR
Number of Contacts 42
Body Length or Diameter 2.69 inch
Pitch - Mating 0.100 2.54mm
Current Rating 1A
Terminal Pitch 2.54mm
Contact Finish - Mating Tin
Additional Feature STANDARD: UL 94V-0
Number of Positions 42
Type DIP, ZIF (ZIP), 0.6 (15.24mm) Row Spacing
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Closed Frame
JESD-609 Code e4
Series 57
Published 2007
Packaging Bulk
Physical
Contact Material - Post Beryllium Copper
Contact Material - Mating Beryllium Copper
Number of Positions or Pins (Grid) 42 (2 x 21)
Housing Material Polyphenylene Sulfide (PPS), Glass Filled
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold, Tin
Supply Chain
Factory Lead Time 5 Weeks
