32-3575-16
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Sockets for ICs, Transistors
Description

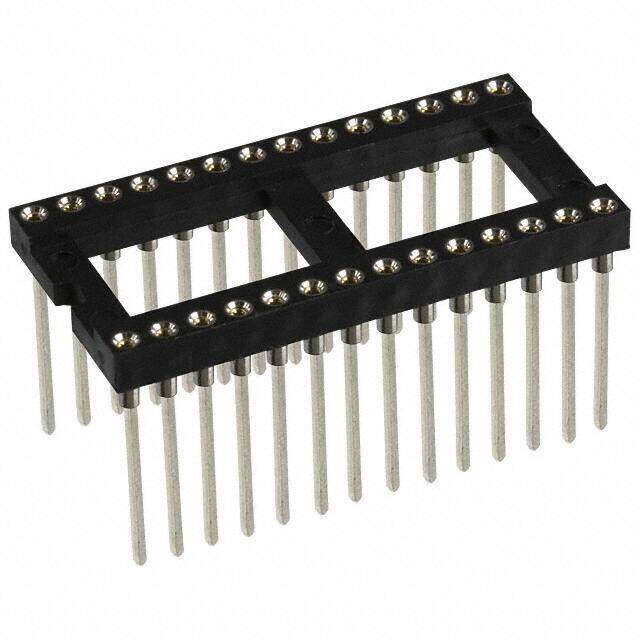

57 ROHS3Compliant 2007 Closed Frame DIP, ZIF (ZIP), 0.3 (7.62mm) Row Spacing Socket UL94V-0 1A 50.0muin 1.27mum
PDF
/
Buying Options
Total Price: USD $91.26
Unit Price: USD $91.263618
≥1 USD $91.263618
≥200 USD $36.415907
≥496 USD $35.198849
≥1000 USD $34.597541
Inventory: 6724
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 50.0μin 1.27μm
Contact Finish Thickness - Mating 50.0μin 1.27μm
Technical
Pitch - Post 0.100 2.54mm
Termination Post Length 0.110 2.78mm
Lead Length 2.794mm
Contact Finish - Post Nickel Boron
Number of Contacts 32
Pitch - Mating 0.100 2.54mm
Current Rating 1A
Contact Finish - Mating Nickel Boron
Additional Feature STANDARD: UL 94V-0
Number of Positions 32
Type DIP, ZIF (ZIP), 0.3 (7.62mm) Row Spacing
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Closed Frame
Series 57
Published 2007
Packaging Bulk
Physical
Contact Material - Post Beryllium Nickel
Contact Material - Mating Beryllium Nickel
Number of Positions or Pins (Grid) 32 (2 x 16)
Housing Material Polyphenylene Sulfide (PPS), Glass Filled
Mounting Type Through Hole
Mount Through Hole
Contact Plating Nickel
Supply Chain
Factory Lead Time 5 Weeks
