18-6823-90C
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Sockets for ICs, Transistors
Description

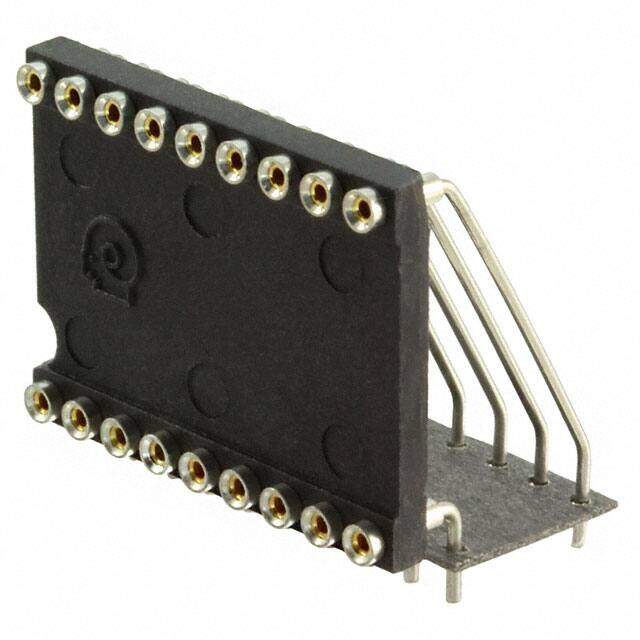

IC & Component Sockets VERTISOCKETS HORIZ COLLET 18 PINS
PDF
/
Inventory: 2932
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 200.0μin 5.08μm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Technical
Pitch - Post 0.100 2.54mm
Termination Post Length 0.140 3.56mm
PCB Contact Row Spacing 0.3 mm
Mating Contact Pitch 0.1 inch
Contact Style RND PIN-SKT
Body Depth 0.528 inch
Lead Length 3.556mm
Body Breadth 0.7 inch
PCB Contact Pattern RECTANGULAR
Contact Finish - Post Tin
Number of Contacts 18
Body Length or Diameter 0.9 inch
Pitch - Mating 0.100 2.54mm
Current Rating 3A
Terminal Pitch 2.54mm
Contact Finish - Mating Gold
Additional Feature STANDARD: UL 94V-0
Number of Positions 18
Type DIP, 0.6 (15.24mm) Row Spacing
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Closed Frame
Series Vertisockets? 800
Published 2007
Packaging Bulk
Operating Temperature -55°C~105°C
Physical
Contact Material - Post Brass
Contact Material - Mating Beryllium Copper
Number of Positions or Pins (Grid) 18 (2 x 9)
Housing Material Polyamide (PA46), Nylon 4/6, Glass Filled
Mounting Type Through Hole, Right Angle, Horizontal
Mount Horizontal, Through Hole
Supply Chain
Factory Lead Time 6 Weeks
