10-6810-90C
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Sockets for ICs, Transistors
Description

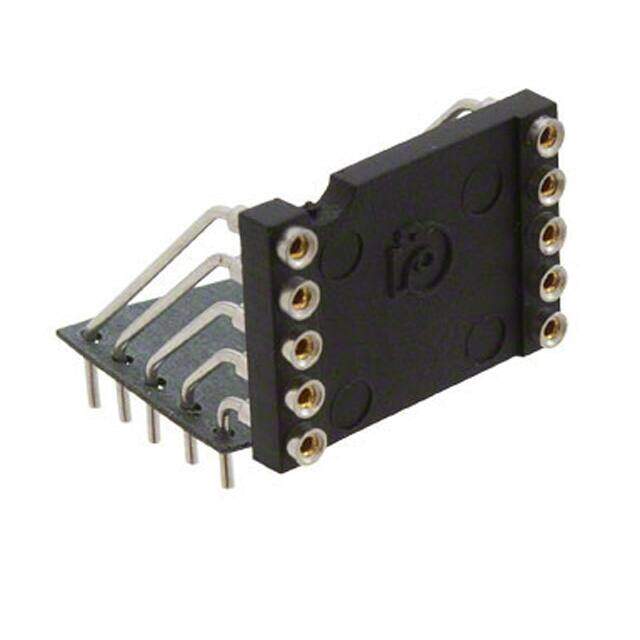

IC & Component Sockets VERTISOCKETS VERT COLLET 10 PINS
PDF
/
Buying Options
Total Price: USD $21.01
Unit Price: USD $21.011652
≥1 USD $21.011652
≥200 USD $8.384179
≥500 USD $8.104532
≥1000 USD $7.965364
Inventory: 3007
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Through Hole, Vertical
Mounting Type Through Hole, Right Angle, Vertical
Number of Pins 10
Housing Material Polyamide (PA46), Nylon 4/6, Glass Filled
Number of Positions or Pins (Grid) 10 (2 x 5)
Contact Material - Mating Beryllium Copper
Contact Material - Post Brass
Technical
Packaging Bulk
Published 2013
Series Vertisockets? 800
Feature Closed Frame
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Type DIP, 0.6 (15.24mm) Row Spacing
Additional Feature STANDARD: UL 94V-HB
Contact Finish - Mating Gold
Terminal Pitch 15.24mm
Current Rating 3A
Pitch - Mating 0.100 2.54mm
Number of Contacts 10
Contact Finish - Post Tin
Lead Length 3.556mm
Termination Post Length 0.140 3.56mm
Pitch - Post 0.100 2.54mm
Dimensions
Contact Finish Thickness - Mating 30.0μin 0.76μm
Contact Finish Thickness - Post 200.0μin 5.08μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
