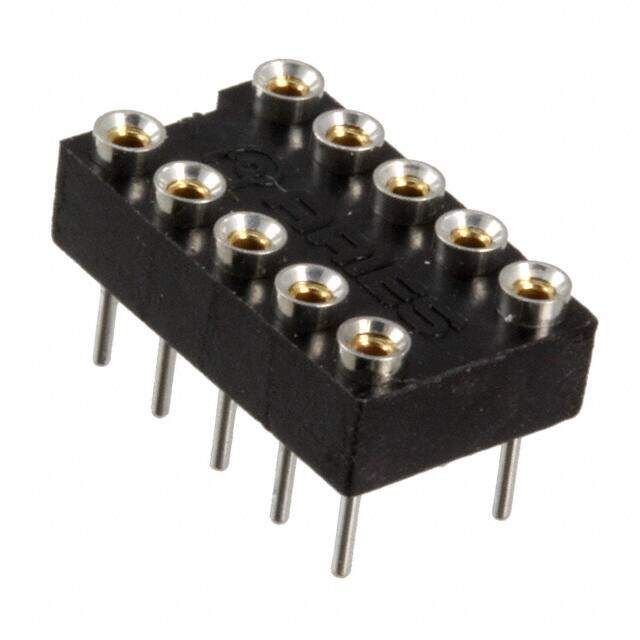

10-3513-11 image
Favorite
10-3513-11 image
Favorite

10-3513-11

Aries Electronics
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Sockets for ICs, Transistors
Description 513 Series 10 Position Low Profile Collet Socket
PDF
/
Inventory: 3724
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 5 Weeks

Physical

Mount Through Hole
Mounting Type Through Hole
Number of Pins 10
Housing Material Polyamide (PA46), Nylon 4/6, Glass Filled
Number of Positions or Pins (Grid) 10 (2 x 5)
Contact Material - Mating Beryllium Copper
Contact Material - Post Brass

Technical

Operating Temperature -55°C~105°C
Packaging Bulk
Published 2007
Series Lo-PRO?file, 513
JESD-609 Code e4
Feature Closed Frame
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Type DIP, 0.3 (7.62mm) Row Spacing
Additional Feature STANDARD: UL 94V-0
Contact Finish - Mating Gold
Terminal Pitch 2.54mm
Current Rating 3A
Pitch - Mating 0.100 2.54mm
Body Length or Diameter 1 inch
Number of Contacts 10
PCB Contact Pattern RECTANGULAR
Body Breadth 0.4 inch
Lead Length 3.175mm
Body Depth 0.165 inch
Contact Style RND PIN-SKT
Mating Contact Pitch 0.1 inch
PCB Contact Row Spacing 0.3 mm
Termination Post Length 0.125 3.18mm
Pitch - Post 0.100 2.54mm

Dimensions

Contact Finish Thickness - Mating 10.0μin 0.25μm
Contact Finish Thickness - Post 10.0μin 0.25μm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
