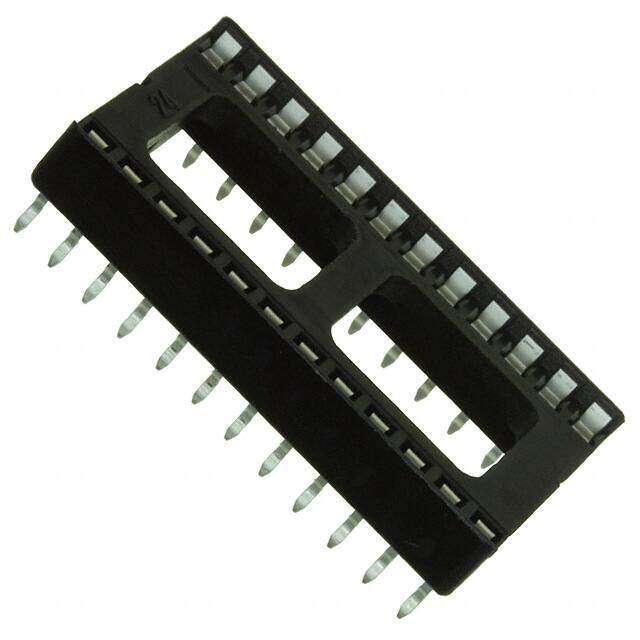

4824-6004-CP
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Sockets for ICs, Transistors
Description
CONN IC DIP SOCKET 24POS TIN
PDF
/
Buying Options
Total Price: USD $0.62
Unit Price: USD $0.616
≥1 USD $0.616
≥10 USD $0.520854
≥100 USD $0.4994
≥500 USD $0.488814
≥1000 USD $0.467658
≥3000 USD $0.425119
Inventory: 3662
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
REACH SVHC Unknown
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 35.0μin 0.90μm
Contact Finish Thickness - Mating 35.4μin 0.90μm
Width 17.78mm
Length 30.35mm
Technical
Pitch - Post 0.100 2.54mm
Row Spacing 15.24 mm
Insulation Resistance 5GOhm
Contact Finish - Post Tin
Number of Contacts 24
Voltage - Rated AC 100V
Pitch - Mating 0.100 2.54mm
Current Rating 1A
Pitch 2.54mm
Current Rating (Amps) 1A
Contact Finish - Mating Tin
Gender Female
Number of Rows 2
Min Operating Temperature -25°C
Max Operating Temperature 85°C
Number of Positions 24
Type DIP, 0.6 (15.24mm) Row Spacing
Connector Type DIP, Socket
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Open Frame
Series 4800
Published 2007
Packaging Tube
Operating Temperature -25°C~85°C
Physical
Contact Material - Post Phosphor Bronze
Contact Material - Mating Phosphor Bronze
Number of Positions or Pins (Grid) 24 (2 x 12)
Housing Material Polyester, Glass Filled
Number of Pins 24
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Contact Material Bronze
Supply Chain
Factory Lead Time 9 Weeks
