4818-3004-CP
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Sockets for ICs, Transistors
Description

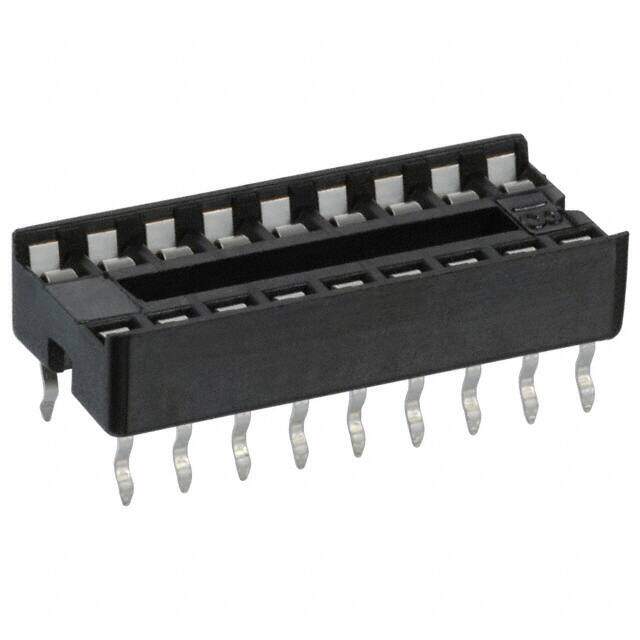

CONN IC DIP SOCKET 18POS TIN
PDF
/
Buying Options
Total Price: USD $0.49
Unit Price: USD $0.4928
≥1 USD $0.4928
≥10 USD $0.419602
≥100 USD $0.394002
≥500 USD $0.376878
≥1000 USD $0.342637
≥3000 USD $0.308378
Inventory: 6250
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 35.0μin 0.90μm
Contact Finish Thickness - Mating 35.4μin 0.90μm
Width 10.16mm
Length 22.73mm
Technical
Pitch - Post 0.100 2.54mm
Row Spacing 7.62 mm
Insulation Resistance 5GOhm
Contact Finish - Post Tin
Number of Contacts 18
Voltage - Rated AC 100V
Pitch - Mating 0.100 2.54mm
Current Rating 1A
Pitch 2.54mm
Current Rating (Amps) 1A
Contact Finish - Mating Tin
Number of Rows 2
Min Operating Temperature -25°C
Max Operating Temperature 85°C
Number of Positions 18
Type DIP, 0.3 (7.62mm) Row Spacing
Connector Type DIP, Socket
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Open Frame
Series 4800
Published 2006
Packaging Tube
Operating Temperature -25°C~85°C
Physical
Contact Material - Post Phosphor Bronze
Contact Material - Mating Phosphor Bronze
Number of Positions or Pins (Grid) 18 (2 x 9)
Housing Material Polyester, Glass Filled
Number of Pins 18
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Contact Material Bronze
Supply Chain
Factory Lead Time 9 Weeks
