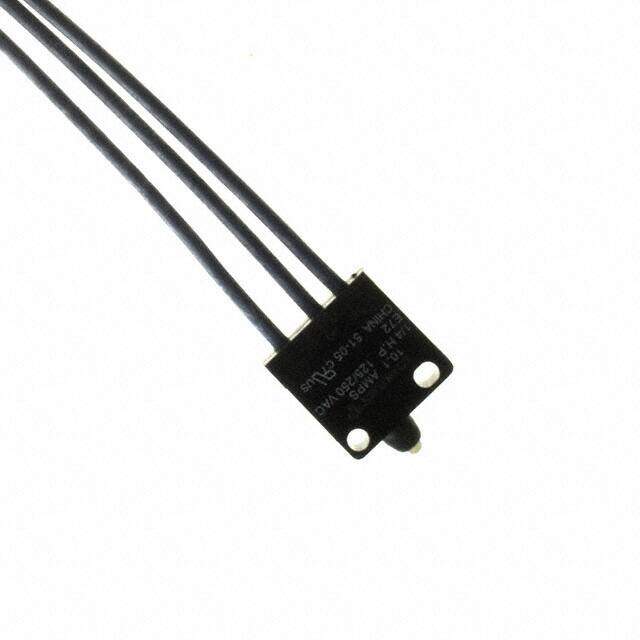

E72-40AT
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description
SWITCH SNAP ACTION SPDT 10A 125V
PDF
/
Buying Options
Total Price: USD $12.17
Unit Price: USD $12.170809
≥1 USD $12.170809
≥10 USD $11.481899
≥100 USD $10.831976
≥500 USD $10.218846
≥1000 USD $9.640428
Inventory: 7089
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Dimensions
Length 23.24mm
Technical
Operating Position 0.330 (8.4mm)
Pretravel 0.040 (1.0mm)
Differential Travel 0.004 (0.1mm)
Overtravel 0.035 (0.9mm)
Operating Force 300gf
Throw Configuration SPDT
Number of Poles 1
Electrical Life 6,000 Cycles
Max Current Rating 10.1A
Max Voltage Rating (AC) 250V
Switch Function On-Mom
Circuit SPDT
Actuator Type Round (Pin Plunger)
Approval Agency cULus
Voltage - Rated AC 250V
Termination Style Wire Leads
Current Rating 10.1A
Depth 9.78mm
Orientation Straight
Current Rating (Amps) 10A AC
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Termination Wire Leads
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series E
Published 2004
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Housing Material Thermoplastic
Mounting Type Chassis Mount
Mount Brackets, Chassis Mount, Panel, Screw, Wire
Contact Material Silver
Supply Chain
Factory Lead Time 18 Weeks
