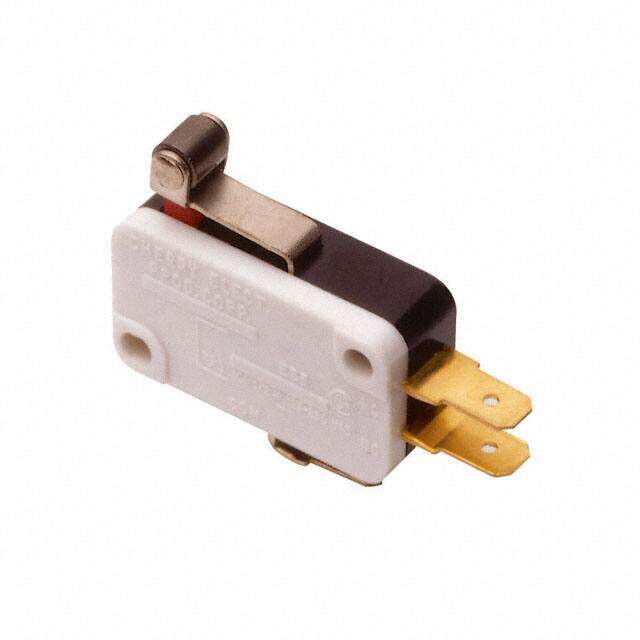

E34-00K image
Favorite
E34-00K image
Favorite

E34-00K

ZF Electronics
RoHS
RoHS RoHS compliant
Package /
Category Switches / Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 15A 125V
PDF
/
Inventory: 6082
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Technical

Operating Position 0.806 (20.5mm)
Pretravel 0.040 (1.0mm)
Differential Travel 0.010 (0.25mm)
Overtravel 0.040 (1.0mm)
Operating Force 400gf
Electrical Life 6,000 Cycles
Switch Function On-Mom
Circuit SPDT
Actuator Type Lever, Roller
Voltage - Rated AC 125V
Termination Style Quick Connect - 0.187 (4.7mm)
Current Rating (Amps) 15A AC
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series E
Packaging Bulk
Operating Temperature -40°C~85°C

Physical

Mounting Type Chassis Mount
