E23-50H
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description

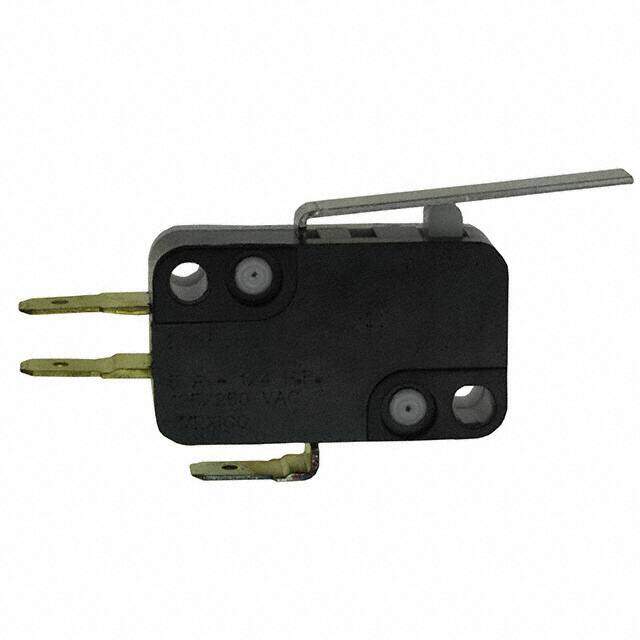

SWITCH SNAP ACTION SPDT 5A 125V
PDF
/
Inventory: 8705
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Operating Position 0.600 (15.2mm)
Pretravel 0.125 (3.2mm)
Differential Travel 0.030 (0.76mm)
Overtravel 0.085 (2.16mm)
Operating Force 85gf
Electrical Life 6,000 Cycles
Switch Function On-Mom
Circuit SPDT
Actuator Type Lever, Straight
Voltage - Rated AC 125V
Termination Style Quick Connect - 0.187 (4.7mm)
Current Rating (Amps) 5A AC
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series E
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Mounting Type Chassis Mount
