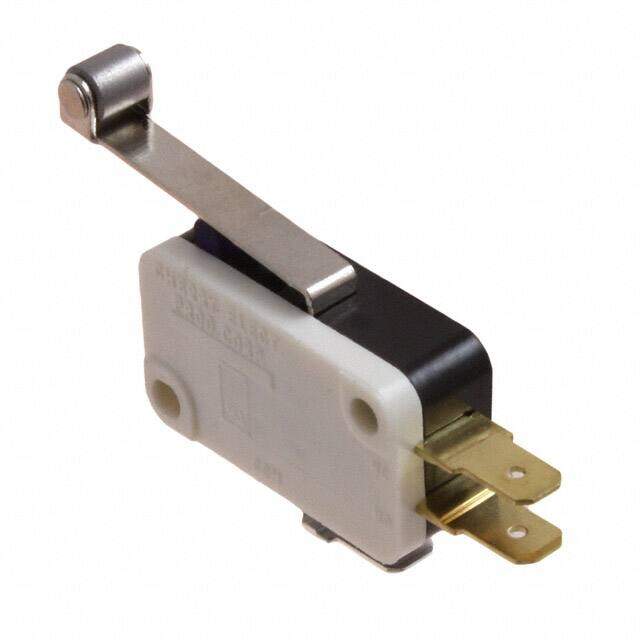

E22-50K
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description
SWITCH SNAP ACTION SPDT 3A 125V
PDF
/
Buying Options
Total Price: USD $27.36
Unit Price: USD $27.36
≥1 USD $27.36
≥10 USD $22.44945
≥100 USD $21.7474
≥500 USD $21.0463
≥1000 USD $20.34425
Inventory: 2100
Minimum: 1
-
+
Technical Details
Physical
Mounting Type Chassis Mount
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Series E
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Voltage - Rated DC 125V
Current Rating (Amps) 3A AC 100mA DC
Termination Style Quick Connect - 0.187 (4.7mm)
Voltage - Rated AC 125V
Actuator Type Lever, Roller
Circuit SPDT
Switch Function On-Mom
Electrical Life 6,000 Cycles
Operating Force 35gf
Overtravel 0.085 (2.16mm)
Differential Travel 0.030 (0.76mm)
Pretravel 0.125 (3.2mm)
Operating Position 0.806 (20.5mm)
Compliance
RoHS Status ROHS3 Compliant
