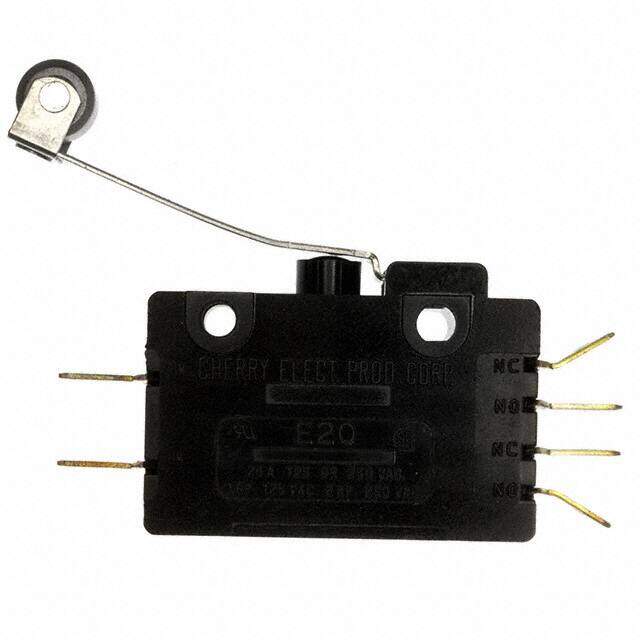

E20-50K
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description
SWITCH SNAP ACTION DPDT 20A 125V
PDF
/
Buying Options
Total Price: USD $25.6
Unit Price: USD $25.595263
≥1 USD $25.595263
≥10 USD $24.14647
≥100 USD $22.779696
≥500 USD $21.490269
≥1000 USD $20.273843
Inventory: 1539
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Contact Material Brass, Cadmium, Gold, Silver
Contact Plating Silver
Mount Chassis Mount, Panel, Screw
Mounting Type Chassis Mount
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Published 2008
Series E
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Quick Connect
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Current Rating (Amps) 20A AC
Orientation Straight
Current Rating 20A
Termination Style Quick Connect - 0.250 (6.3mm)
Voltage - Rated AC 125V
Approval Agency CSA, UL
Actuator Type Lever, Roller
Circuit DPDT
Switch Function On-Mom
Electrical Life 6,000 Cycles
Number of Poles 2
Throw Configuration DPDT
Operating Force 312gf
Overtravel 0.146 (3.7mm)
Differential Travel 0.075 (1.9mm)
Pretravel 0.524 (13.3mm)
Operating Position 0.825 (21.0mm)
Dimensions
Height 16.3mm
Width 46.3mm
Compliance
RoHS Status ROHS3 Compliant
Flammability Rating UL94 HB
Lead Free Lead Free
