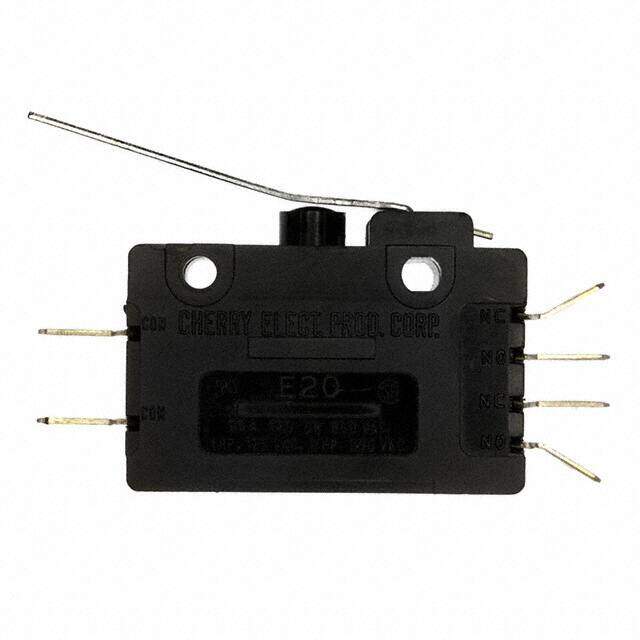

E20-00H image
Favorite
E20-00H image
Favorite

E20-00H

ZF Electronics
RoHS
RoHS RoHS compliant
Package /
Category Switches / Snap Action, Limit Switches
Description SWITCH SNAP ACTION DPDT 20A 125V
PDF
/
Inventory: 6251
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Technical

Operating Position 0.468 (11.9mm)
Pretravel 0.330 (8.4mm)
Differential Travel 0.050 (1.3mm)
Overtravel 0.156 (3.96mm)
Operating Force 425gf
Electrical Life 6,000 Cycles
Switch Function On-Mom
Circuit DPDT
Actuator Type Lever, Straight
Voltage - Rated AC 125V
Termination Style Quick Connect - 0.250 (6.3mm)
Current Rating (Amps) 20A AC
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series E
Published 2008
Packaging Bulk
Operating Temperature -40°C~105°C

Physical

Mounting Type Chassis Mount

Supply Chain

Factory Lead Time 18 Weeks
