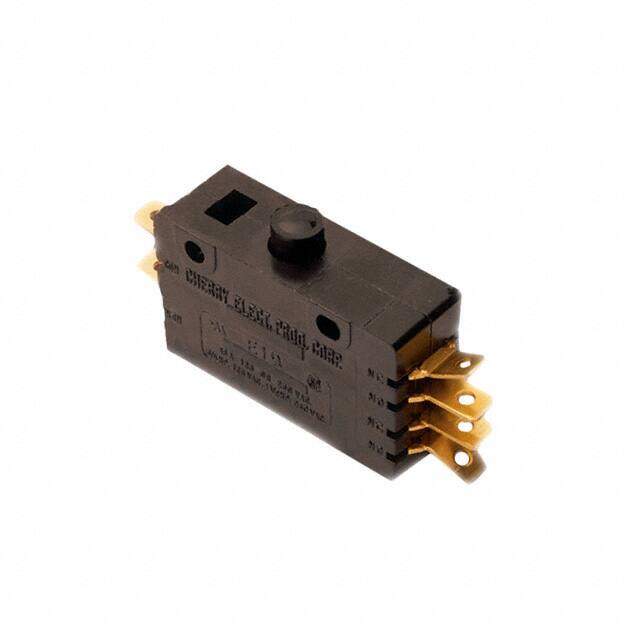

E20-00A image
Favorite
E20-00A image
Favorite
RoHS
RoHS RoHS compliant
Package 125
Category Switches / Snap Action, Limit Switches
Description SWITCH SNAP ACTION DPDT 20A 125V
PDF
/
Inventory: 3164
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 18 Weeks

Physical

Contact Material Brass, Cadmium, Gold, Silver
Contact Plating Silver
Mount Chassis Mount, Panel, Screw
Mounting Type Chassis Mount
Package / Case 125

Technical

Operating Temperature -40°C~105°C
Packaging Bulk
Published 2015
Series E
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Quick Connect
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Current Rating (Amps) 20A AC
Orientation Straight
Current Rating 20A
Termination Style Quick Connect - 0.250 (6.3mm)
Voltage - Rated AC 125V
Approval Agency CSA, UL
Actuator Type Round (Pin Plunger)
Circuit DPDT
Switch Function On-Mom
Electrical Life 6,000 Cycles
Number of Poles 2
Throw Configuration DPDT
Contact Current Rating 20A
Operating Force 1280gf
Overtravel 0.050 (1.27mm)
Differential Travel 0.015 (0.38mm)
Pretravel 0.100 (2.5mm)
Operating Position 0.248 (6.3mm)

Dimensions

Height 16.3mm
Length 46.1mm
Width 46.3mm

Compliance

REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Flammability Rating UL94 HB
Lead Free Lead Free
