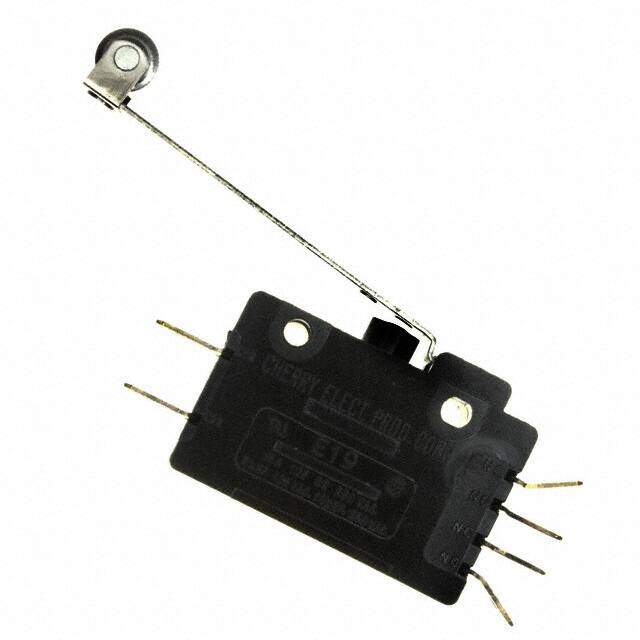

E19-50K

ZF Electronics
RoHS
RoHS RoHS compliant
Package /
Category Switches / Snap Action, Limit Switches
Description SWITCH SNAP ACTION DPDT 15A 125V
PDF
/
Inventory: 6881
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 18 Weeks

Physical

Mounting Type Chassis Mount

Technical

Operating Temperature -40°C~105°C
Packaging Bulk
Published 2008
Series E
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Current Rating (Amps) 15A AC
Termination Style Quick Connect - 0.250 (6.3mm)
Voltage - Rated AC 125V
Actuator Type Lever, Roller
Circuit DPDT
Switch Function On-Mom
Electrical Life 6,000 Cycles
Operating Force 150gf
Overtravel 0.187 (4.75mm)
Differential Travel 0.140 (3.55mm)
Pretravel 0.312 (7.9mm)
Operating Position 0.687 (17.45mm)

Compliance

RoHS Status ROHS3 Compliant
