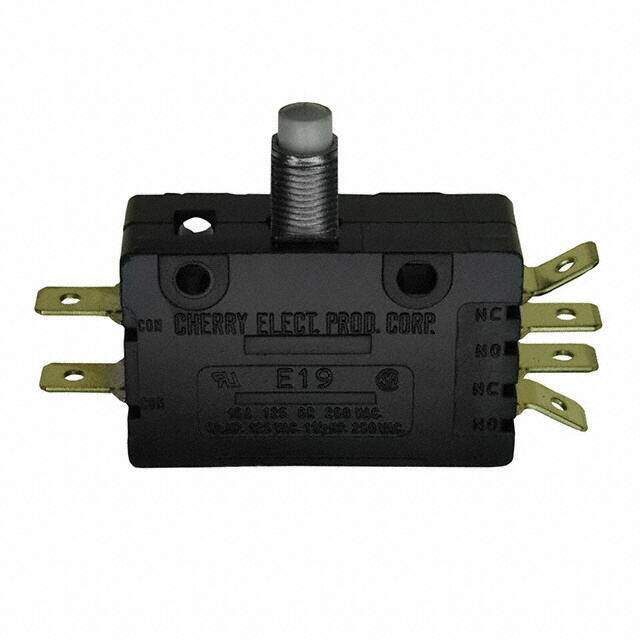

E19-00J
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description
SWITCH SNAP ACTION DPDT 15A 125V
PDF
/
Buying Options
Total Price: USD $8.54
Unit Price: USD $8.544948
≥1 USD $8.544948
≥10 USD $8.061277
≥100 USD $7.604976
≥500 USD $7.174502
≥1000 USD $6.768396
Inventory: 1634
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mounting Type Panel Mount
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Published 2008
Series E
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Current Rating (Amps) 15A AC
Termination Style Quick Connect - 0.250 (6.3mm)
Voltage - Rated AC 125V
Actuator Type Overtravel Plunger
Circuit DPDT
Switch Function On-Mom
Electrical Life 6,000 Cycles
Operating Force 850gf
Overtravel 0.079 (2.0mm)
Differential Travel 0.015 (0.38mm)
Pretravel 0.050 (1.27mm)
Operating Position 0.670 (17.0mm)
Compliance
RoHS Status ROHS3 Compliant
