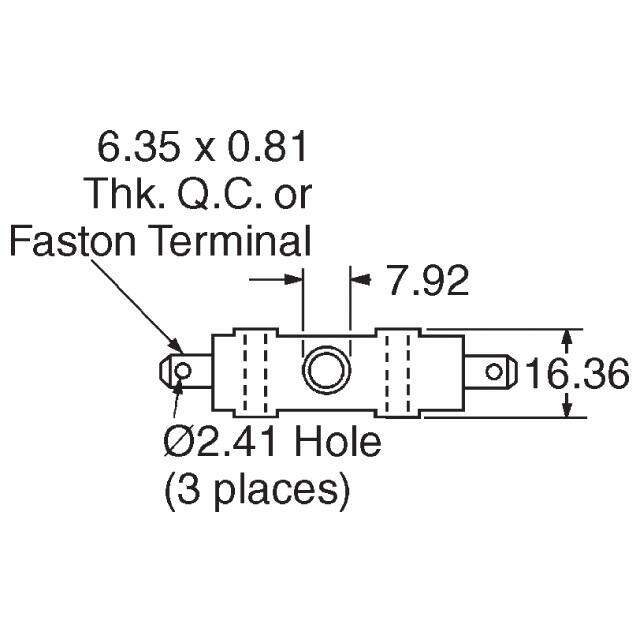

E19-00H
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description
SWITCH SNAP ACTION DPDT 15A 125V
PDF
/
Inventory: 2669
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mounting Type Chassis Mount
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Published 2008
Series E
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Current Rating (Amps) 15A AC
Termination Style Quick Connect - 0.250 (6.3mm)
Voltage - Rated AC 125V
Actuator Type Lever, Straight
Circuit DPDT
Switch Function On-Mom
Electrical Life 6,000 Cycles
Operating Force 205gf
Overtravel 0.187 (4.75mm)
Differential Travel 0.093 (2.36mm)
Pretravel 0.275 (7.0mm)
Operating Position 0.312 (7.9mm)
Compliance
RoHS Status ROHS3 Compliant
