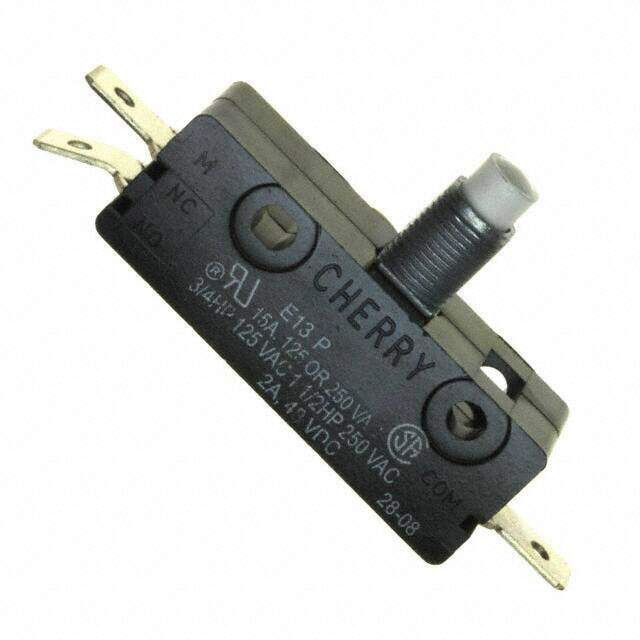

E13-00J
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description
SWITCH SNAP ACTION SPDT 15A 125V
PDF
/
Buying Options
Total Price: USD $4.78
Unit Price: USD $4.780195
≥1 USD $4.780195
≥10 USD $4.509625
≥100 USD $4.254349
≥500 USD $4.013546
≥1000 USD $3.786362
Inventory: 5547
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Operating Position 0.670 (17.0mm)
Pretravel 0.050 (1.27mm)
Differential Travel 0.015 (0.38mm)
Overtravel 0.109 (2.77mm)
Operating Force 425gf
Electrical Life 6,000 Cycles
Switch Function On-Mom
Circuit SPDT
Actuator Type Overtravel Plunger
Voltage - Rated AC 125V
Termination Style Quick Connect - 0.250 (6.3mm)
Current Rating (Amps) 15A AC 2A DC
Voltage - Rated DC 48V
Part Status Active
Series E
Published 2008
Packaging Bulk
Operating Temperature -40°C~105°C
Physical
Mounting Type Panel Mount
Supply Chain
Factory Lead Time 18 Weeks
