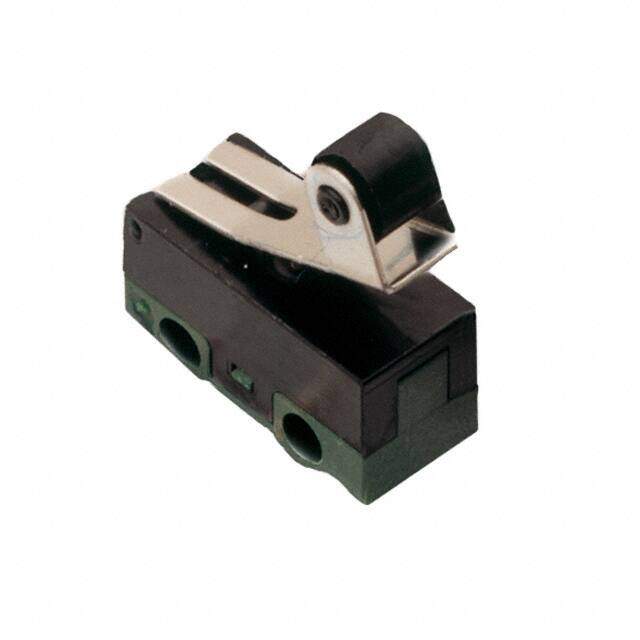

DG23-B3RA
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description
SWITCH SNAP ACTION SPDT 50MA 30V
PDF
/
Buying Options
Total Price: USD $2.34
Unit Price: USD $2.344839
≥1 USD $2.344839
≥200 USD $0.907214
≥500 USD $0.875704
≥1500 USD $0.85995
Inventory: 6394
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mounting Type Through Hole, Right Angle
Technical
Operating Temperature -25°C~85°C
Packaging Bulk
Published 2014
Series DG
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Voltage - Rated DC 30V
Current Rating (Amps) 50mA DC
Ingress Protection IP40
Termination Style PC Pin
Actuator Type Lever, Roller
Circuit SPDT
Switch Function On-Mom
Electrical Life 200,000 Cycles
Mechanical Life 1,000,000 Cycles
Operating Force 60gf
Overtravel 0.022 (0.55mm)
Differential Travel 0.020 (0.5mm)
Pretravel 0.060 (1.5mm)
Operating Position 0.488 (12.4mm)
Compliance
RoHS Status ROHS3 Compliant
