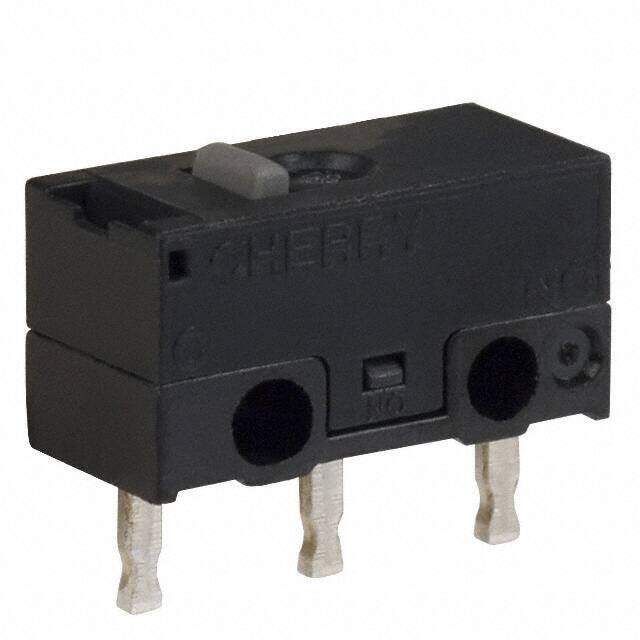

DG13-B1AA image
Favorite
DG13-B1AA image
Favorite

DG13-B1AA

ZF Electronics
RoHS
RoHS RoHS compliant
Package /
Category Switches / Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 3A 125V
PDF
/
Inventory: 8616
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Width 12.8mm

Technical

Operating Position 0.213 (5.4mm)
Pretravel 0.020 (0.5mm)
Differential Travel 0.004 (0.1mm)
Overtravel 0.008 (0.2mm)
Operating Force 140gf
Contact Current Rating 3A
Mechanical Life 1,000,000 Cycles
Electrical Life 10,000 Cycles
Switch Function On-Mom
Circuit SPDT
Actuator Type Round (Pin Plunger)
Voltage - Rated AC 125V
Termination Style PC Pin
Ingress Protection IP40
Current Rating (Amps) 3A AC 2A DC
Voltage - Rated DC 30V
Color Grey
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series DG
Published 2004
Packaging Bulk
Operating Temperature -25°C~85°C

Physical

Mounting Type Through Hole

Supply Chain

Factory Lead Time 18 Weeks
