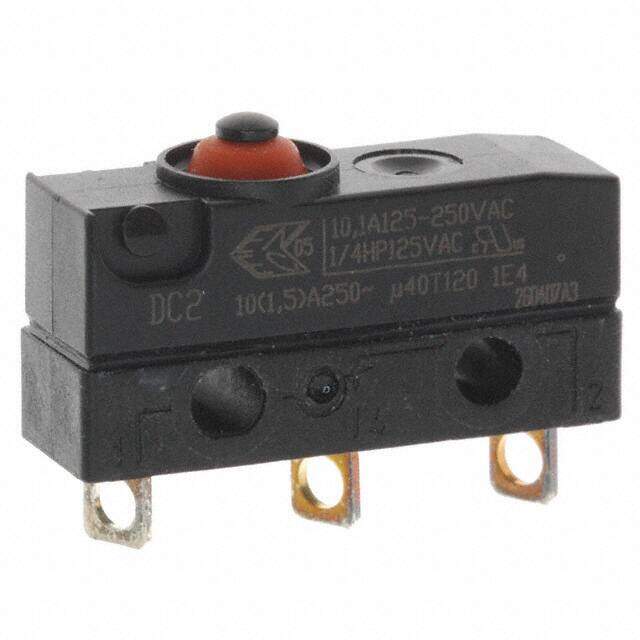

DC3C-A1AA image
Favorite
DC3C-A1AA image
Favorite

DC3C-A1AA

ZF Electronics
RoHS
RoHS RoHS compliant
Package /
Category Switches / Snap Action, Limit Switches
Description SWITCH SNAP ACT SPDT 100MA 125V
PDF
/
Inventory: 1678
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Width 20mm

Technical

Operating Position 0.330 (8.4mm)
Pretravel 0.040 (1.0mm)
Differential Travel 0.004 (0.1mm)
Overtravel 0.025 (0.6mm)
Operating Force 204gf
Contact Current Rating 100mA
Mechanical Life 1,000,000 Cycles
Electrical Life 100,000 Cycles
Switch Function On-Mom
Circuit SPDT
Actuator Type Round (Pin Plunger)
Voltage - Rated AC 125V
Termination Style Solder Lug
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating (Amps) 100mA AC
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series DC
Published 2006
Packaging Bulk
Operating Temperature -40°C~120°C

Physical

Mounting Type Chassis Mount

Supply Chain

Factory Lead Time 39 Weeks
