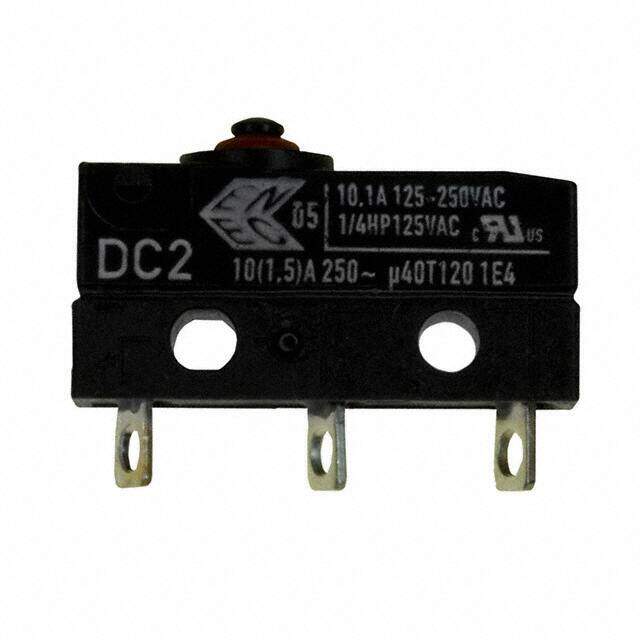

DC2C-A1AA
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description
SWITCH SNAP ACTION SPDT 10A 125V
PDF
/
Buying Options
Total Price: USD $8.5
Unit Price: USD $8.499404
≥1 USD $8.499404
≥10 USD $8.018303
≥100 USD $7.56444
≥500 USD $7.136265
≥1000 USD $6.732323
Inventory: 1172
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 39 Weeks
Physical
Mounting Type Chassis Mount
Technical
Operating Temperature -40°C~120°C
Packaging Bulk
Published 2011
Series DC
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Current Rating (Amps) 10A AC
Ingress Protection IP67 - Dust Tight, Waterproof
Termination Style Solder Lug
Voltage - Rated AC 125V
Actuator Type Round (Pin Plunger)
Circuit SPDT
Switch Function On-Mom
Electrical Life 6,000 Cycles
Mechanical Life 1,000,000 Cycles
Contact Current Rating 10.1A
Operating Force 340gf
Overtravel 0.025 (0.6mm)
Differential Travel 0.004 (0.1mm)
Pretravel 0.040 (1.0mm)
Operating Position 0.330 (8.4mm)
Dimensions
Width 20mm
Compliance
RoHS Status ROHS3 Compliant
