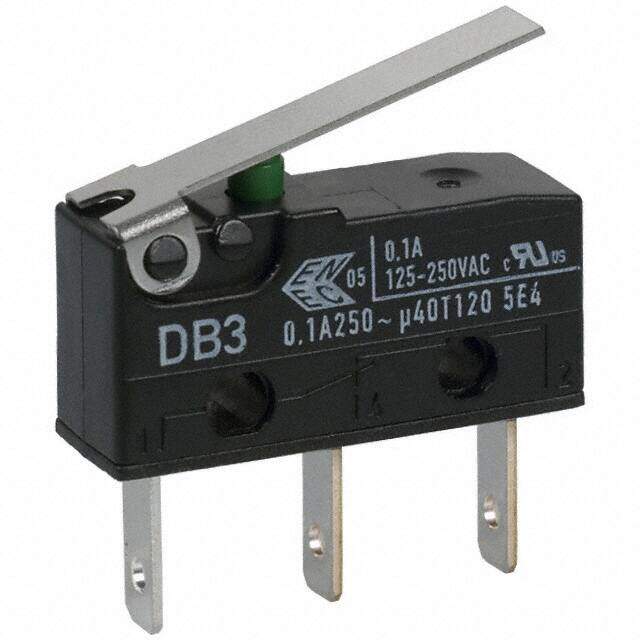

DB3CB1LB
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description
SWITCH SNAP ACT SPDT 100MA 125V
PDF
/
Buying Options
Total Price: USD $2.06
Unit Price: USD $2.0592
≥1 USD $2.0592
≥10 USD $1.90432
≥100 USD $1.785344
≥500 USD $1.745744
≥1000 USD $1.397
Inventory: 46550
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 29 Weeks
Physical
Mounting Type Chassis Mount
Technical
Operating Temperature -40°C~120°C
Packaging Bulk
Published 2015
Series DB
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Current Rating (Amps) 100mA AC
Ingress Protection IP50 - Dust Protected
Termination Style Quick Connect - 0.110 (2.8mm)
Voltage - Rated AC 125V
Actuator Type Lever, Straight
Circuit SPDT
Switch Function On-Mom
Electrical Life 100,000 Cycles
Mechanical Life 15,000,000 Cycles
Operating Force 60gf
Overtravel 0.079 (2.0mm)
Differential Travel 0.020 (0.5mm)
Pretravel 0.157 (4.0mm)
Operating Position 0.420 (10.7mm)
Compliance
RoHS Status ROHS3 Compliant
