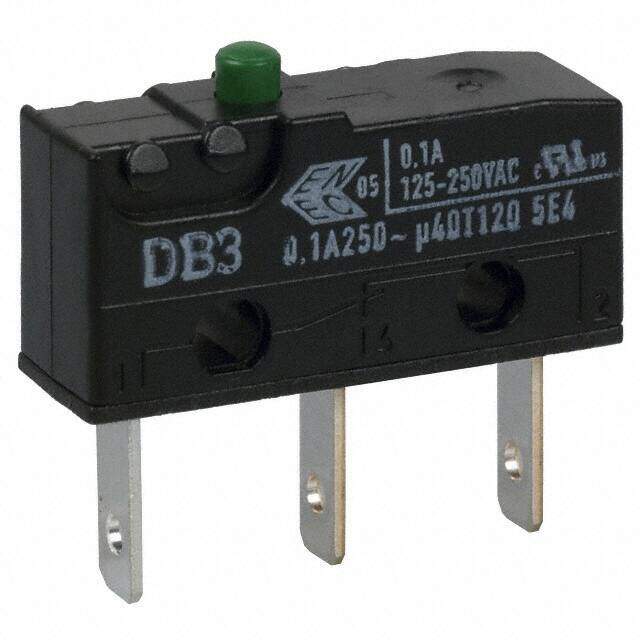

DB3CB1AA image
Favorite
DB3CB1AA image
Favorite

DB3CB1AA

ZF Electronics
RoHS
RoHS RoHS compliant
Package /
Category Switches / Snap Action, Limit Switches
Description SWITCH SNAP ACT SPDT 100MA 125V
PDF
/
Inventory: 4959
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 29 Weeks

Physical

Mounting Type Chassis Mount

Technical

Operating Temperature -40°C~120°C
Packaging Bulk
Published 2006
Series DB
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Current Rating (Amps) 100mA AC
Ingress Protection IP50 - Dust Protected
Termination Style Quick Connect - 0.110 (2.8mm)
Voltage - Rated AC 125V
Actuator Type Round (Pin Plunger)
Circuit SPDT
Switch Function On-Mom
Electrical Life 100,000 Cycles
Mechanical Life 15,000,000 Cycles
Operating Force 150gf
Overtravel 0.025 (0.6mm)
Differential Travel 0.004 (0.1mm)
Pretravel 0.040 (1.0mm)
Operating Position 0.330 (8.4mm)

Compliance

RoHS Status ROHS3 Compliant
