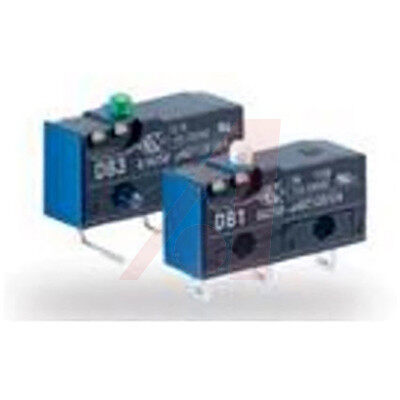

DB3C-B1MC
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description
SWITCH SNAP ACT SPDT 100MA 125V
PDF
/
Inventory: 4199
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Operating Position 0.492 (12.5mm)
Pretravel 0.394 (10.0mm)
Differential Travel 0.055 (1.4mm)
Overtravel 0.158 (4.0mm)
Operating Force 22gf
Mechanical Life 15,000,000 Cycles
Electrical Life 100,000 Cycles
Switch Function On-Mom
Circuit SPDT
Actuator Type Lever, Straight
Voltage - Rated AC 125V
Termination Style Quick Connect - 0.110 (2.8mm)
Ingress Protection IP50 - Dust Protected
Current Rating (Amps) 100mA AC
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series DB
Published 2012
Packaging Bulk
Operating Temperature -40°C~120°C
Physical
Mounting Type Chassis Mount
Supply Chain
Factory Lead Time 29 Weeks
Alternative Model
