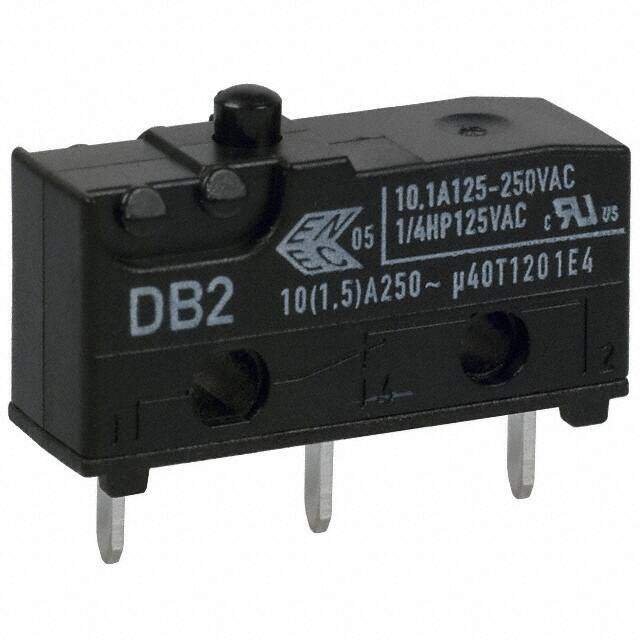

DB2CC1AA
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description
SWITCH SNAP ACTION SPDT 10A 125V
PDF
/
Buying Options
Total Price: USD $2.52
Unit Price: USD $2.5168
≥1 USD $2.5168
≥10 USD $2.32496
≥100 USD $2.179936
≥500 USD $2.13136
≥1000 USD $1.695408
≥3000 USD $1.598502
Inventory: 6456
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 29 Weeks
Physical
Mounting Type Through Hole
Technical
Operating Temperature -40°C~120°C
Packaging Bulk
Series DB
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Current Rating (Amps) 10A AC
Ingress Protection IP50 - Dust Protected
Termination Style PC Pin
Voltage - Rated AC 125V
Actuator Type Round (Pin Plunger)
Circuit SPDT
Switch Function On-Mom
Electrical Life 6,000 Cycles
Mechanical Life 10,000,000 Cycles
Contact Current Rating 10.1A
Operating Force 250gf
Overtravel 0.025 (0.6mm)
Differential Travel 0.004 (0.1mm)
Pretravel 0.040 (1.0mm)
Operating Position 0.330 (8.4mm)
Compliance
RoHS Status ROHS3 Compliant
