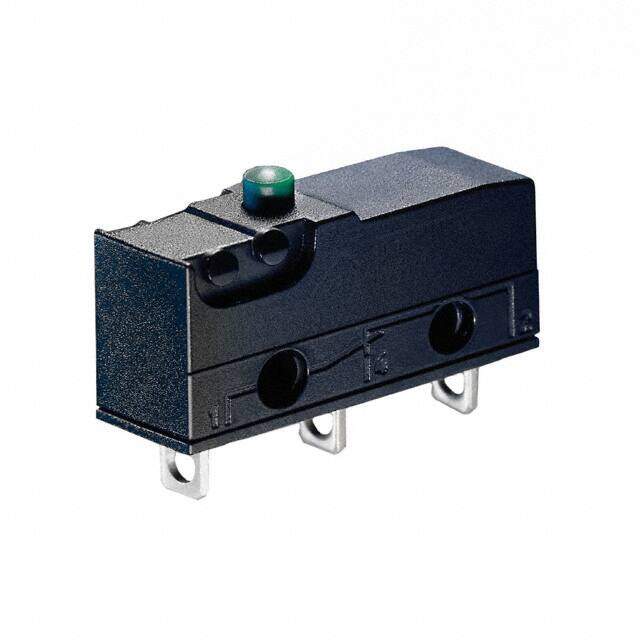

DB2CB1AA
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description
SWITCH SNAP ACTION SPDT 10A 125V
PDF
/
Inventory: /
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Operating Position 0.330 (8.4mm)
Pretravel 0.040 (1.0mm)
Differential Travel 0.004 (0.1mm)
Overtravel 0.025 (0.6mm)
Operating Force 250gf
Contact Current Rating 10.1A
Mechanical Life 10,000,000 Cycles
Electrical Life 6,000 Cycles
Switch Function On-Mom
Circuit SPDT
Actuator Type Round (Pin Plunger)
Voltage - Rated AC 125V
Termination Style Quick Connect - 0.110 (2.8mm)
Ingress Protection IP50 - Dust Protected
Current Rating (Amps) 10A AC
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series DB
Packaging Bulk
Operating Temperature -40°C~120°C
Physical
Mounting Type Chassis Mount
Supply Chain
Factory Lead Time 29 Weeks
