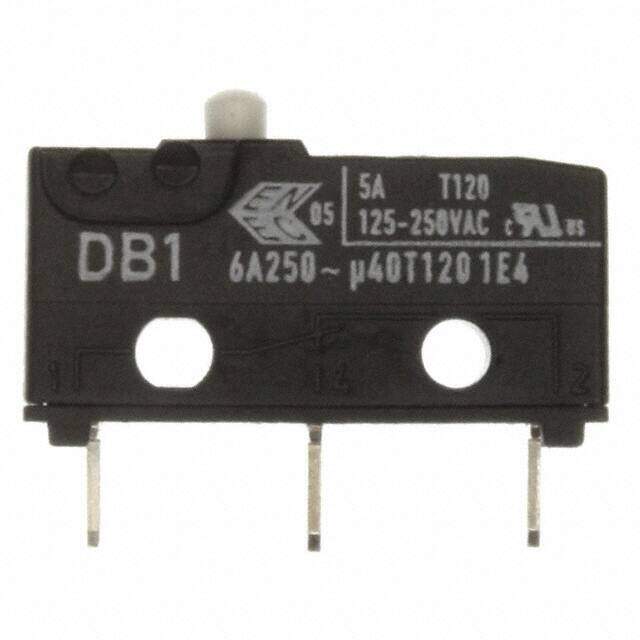

DB1C-C1AA image
Favorite
DB1C-C1AA image
Favorite

DB1C-C1AA

ZF Electronics
RoHS
RoHS RoHS compliant
Package /
Category Switches / Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 5A 125V
PDF
/
Buying Options
Total Price: USD $1.5
Unit Price: USD $1.500645
≥1 USD $1.500645
≥200 USD $0.580302
≥500 USD $0.560608
≥1200 USD $0.550105
Inventory: 1170
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Width 20mm

Technical

Operating Position 0.330 (8.4mm)
Pretravel 0.040 (1.0mm)
Differential Travel 0.004 (0.1mm)
Overtravel 0.025 (0.6mm)
Operating Force 150gf
Contact Current Rating 5A
Mechanical Life 15,000,000 Cycles
Electrical Life 6,000 Cycles
Switch Function On-Mom
Circuit SPDT
Actuator Type Round (Pin Plunger)
Voltage - Rated AC 125V
Termination Style PC Pin
Ingress Protection IP50 - Dust Protected
Current Rating (Amps) 5A AC 1A DC
Voltage - Rated DC 48V
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series DB
Packaging Bulk
Operating Temperature -40°C~120°C

Physical

Material PET
Mounting Type Through Hole

Supply Chain

Factory Lead Time 29 Weeks
