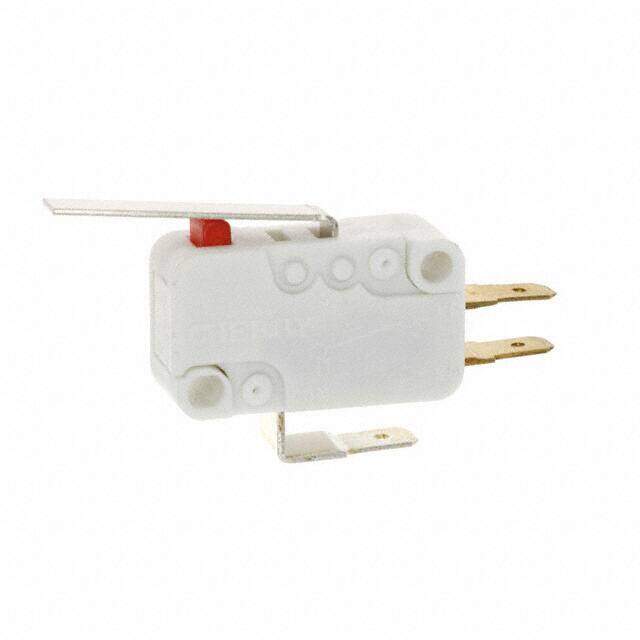

D44C-R1LD
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description
SWITCH SNAP ACTION SPDT 10A 125V
PDF
/
Inventory: 4218
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Operating Position 0.551 (14.0mm)
Pretravel 0.125 (3.2mm)
Differential Travel 0.031 (0.8mm)
Overtravel 0.090 (2.3mm)
Operating Force 147gf
Electrical Life 6,000 Cycles
Switch Function On-Mom
Circuit SPDT
Actuator Type Lever, Straight
Voltage - Rated AC 125V
Termination Style Quick Connect - 0.187 (4.7mm)
Current Rating (Amps) 10A AC 6A DC
Voltage - Rated DC 30V
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series D4
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Mounting Type Chassis Mount
